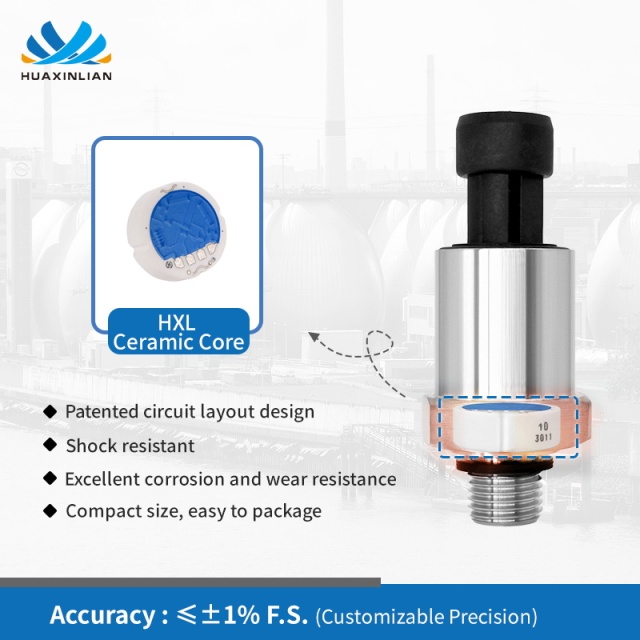

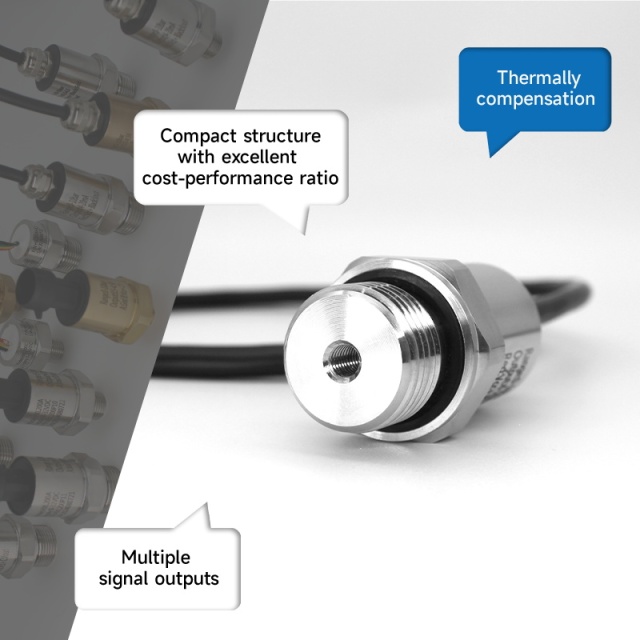

* Compact structure with excellent cost-performance ratio
* Algorithm compensation and correction technology
* Multiple signal outputs
* 150% F.S overload protection performance, strong impact resistance
* Supports customization of various specifications.
Company Introduction
Dongguan Huaxinlian Science and Technology Co.,Ltd. Our company specializes in the research, development, manufacturing, and sales of pressure sensor cells, modules, and transmitters. Headquartered in the Songshan Lake National High-Tech Industrial Zone in Dongguan City, Guangdong Province, the company operates its production base in Ji'an, Jiangxi Province. Boasting a 3000-square-meter dust-free automation workshop equipped with state-of-the-art fully automated production machinery, it achieves a daily production capacity exceeding 30,000 units of pressure cells and modules, with an annual output surpassing 10 million units. These products find wide applications in automotive electronics, oil and gas pipelines, industrial control, aerospace, and smart water management, providing robust product and technical support for the advancement of artificial intelligence and IoT industries.
Specification
|
Model No.
|
HXL-200 Series
|
||
|
Pressure type
|
Gauge pressure, negative pressure, absolute pressure
|
||
|
Measuring Range
|
-1-0-1…400 bar
|
||
|
Accuracy
|
≤ ±1%F.S；accuracy customizable
|
||
|
Electrical performance
|
two wire system
|
three wire system
|
four wire system
|
|
Output signal
|
4~20mA
|
0.5~4.5V/0.35~2.7V ratio/0.132~4.5V ratio
|
IIC digital signals
|
|
Supply voltage
|
8-32V DC
|
5V DC
|
3-5.5V DC
|
|
Work temperature
|
-20℃~85℃
|
||
|
Storage temperature
|
-45℃~85℃
|
||
|
Electrical connection
|
Packard connector、straight joint
|
||
|
Pressure connection
|
internal thread
|
7/16~20 UNF
|
|
|
external thread
|
1/4" NPT、R1/4、G1/4"、G1/2"、M14×1.5、M16×1.5、M20×1.5
|
||
|
customized
|
The thread specification can be customized according to customer requirements.
|
||
|
Material
|
Shell
|
SUS304 stainless steel(standard)、copper(optional）、316L stainless steel(optional)、Accept customization
|
|
|
sensor
|
ceramic (standard)
|
||
|
O shape seal ring
|
NBR(standard)、FKM/CR/EPDM/(optional)
|
||
|
Ingress Protection Rating
|
IP65、IP67、Accept customization
|
||
|
Response time
|
≤20ms
|
||
|
Overload pressure
|
150%F.S.
|
||
|
long-term stability
|
0.1%F.S±0.05%/ year
|
||
|
Burst pressure
|
400% F.S. (P≤100bar); 200% F.S. (P≤400bar)
|
||
|
Insulation resistance
|
>100M Ω @50V dc
|
||
Company Introduction
Dongguan Huaxinlian Science and Technology Co.,Ltd. Our company specializes in the research, development, manufacturing, and sales of pressure sensor cells, modules, and transmitters. Headquartered in the Songshan Lake National High-Tech Industrial Zone in Dongguan City, Guangdong Province, the company operates its production base in Ji'an, Jiangxi Province. Boasting a 3000-square-meter dust-free automation workshop equipped with state-of-the-art fully automated production machinery, it achieves a daily production capacity exceeding 30,000 units of pressure cells and modules, with an annual output surpassing 10 million units. These products find wide applications in automotive electronics, oil and gas pipelines, industrial control, aerospace, and smart water management, providing robust product and technical support for the advancement of artificial intelligence and IoT industries.
FAQ
WHY CHOOSE HXL ?
* Quick response once received customer’s inquiry.
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Short lead time
* Can be customized
* High quality standard
* Quick response once received customer’s inquiry.
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Short lead time
* Can be customized
* High quality standard
Q1: Are you manufacturer or trading company?
Q3: Do you accept OEM production?
A1: We are leading manufacturer for pressure sensors, modules, and pressure transmitters.
Q2: How do you guarantee your product quality?
Q2: How do you guarantee your product quality?
A2: We are an IS09001:2017 certified manufacturer. We have strict quality control
system to do testing, calibration, and temperature compensation for each product. Our products are CE certified as well.
Q3: Do you accept OEM production?
A3: Yes, we also do customized products, customized pressure range, output signals, housing, logo,
etc. Normally, we will have requirement on MOQ for customized products.
Q4: What's your payment terms?
A4: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q5: How long is your production lead time?
A5: It depends on product and order qty. Normally,for the products we have in stock, our lead time is immediate shipment after payment. For the products of no stock, our lead time
is 1-2 weeks after payment.
Q6: When can I get the quotation?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Q7: Can I get samples?
etc. Normally, we will have requirement on MOQ for customized products.
Q4: What's your payment terms?
A4: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q5: How long is your production lead time?
A5: It depends on product and order qty. Normally,for the products we have in stock, our lead time is immediate shipment after payment. For the products of no stock, our lead time
is 1-2 weeks after payment.
Q6: When can I get the quotation?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Q7: Can I get samples?
A7: Yes, we will be glad to provide you samples as per your specific technical requirements.
Q8: Do you have some videos of your products?
A8: Yes, you can contact us to get more detailed videos and photos.
Q9: What’s your product guarantee policy?
A9: 2 year quality warranty and life-long technical support.
Q8: Do you have some videos of your products?
A8: Yes, you can contact us to get more detailed videos and photos.
Q9: What’s your product guarantee policy?
A9: 2 year quality warranty and life-long technical support.
