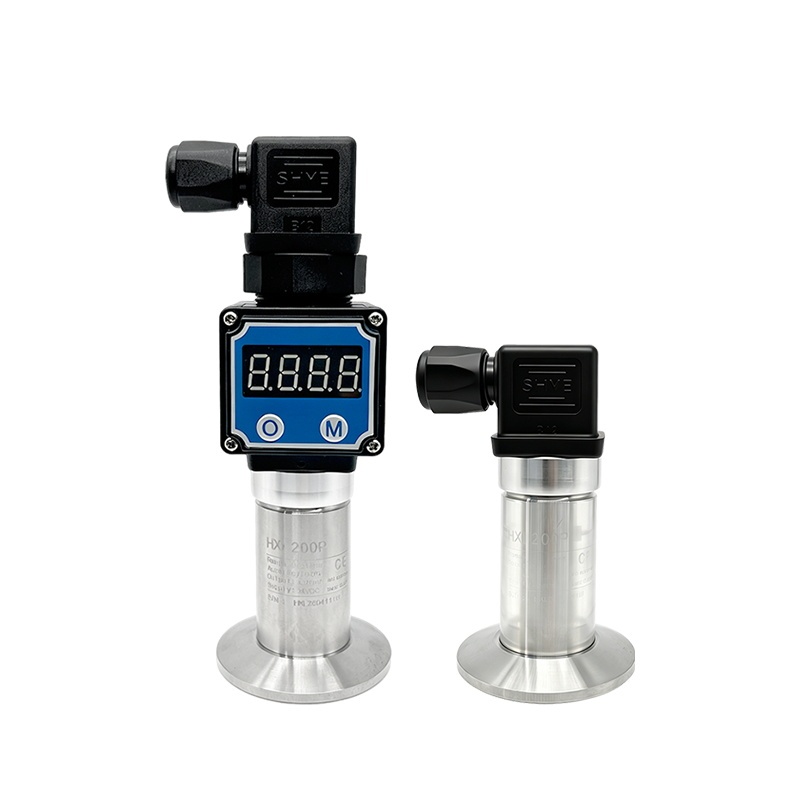

The HXL-200P is engineered specifically for sanitary pipeline systems in the food industry, providing real-time liquid level and pressure measurements critical for process control. Designed for use by engineers and quality assurance teams, this pressure transmitter manufacturer’s product ensures compliance with stringent hygiene standards through a clamp-type sanitary design. Its integration into food and beverage processing lines supports operational reliability and regulatory adherence, addressing the demands of environments where contamination risk must be minimized. This makes it an essential component for industries requiring precise monitoring in sanitary conditions, such as dairy and beverage bottling.
Technical Specifications Enhancing Measurement Precision
Utilizing a diffused silicon pressure sensing element enclosed within a robust stainless steel housing, the HXL-200P demonstrates high accuracy up to ±0.1% FS and a rapid response time below 15ms. This pressure sensor module supports multiple pressure types—absolute, gauge, and sealed gauge—and customizable ranges from 0 to 45 Bar. Advanced signal processing integrated within the compact enclosure delivers stable output via 4~20mA or RS485 digital signals. Its corrosion-resistant construction, along with IP65 to IP68 protection ratings and optional explosion-proof certification compliant with GB3836.4, ensures durability and operational safety in challenging food and pharmaceutical production environments.
Applications Driven by Industry Demands
This flush diaphragm ceramic sensor-equipped transmitter suits a broad scope of sanitary pressure monitoring tasks, including liquid level control and pressure regulation in food pipelines and pharmaceutical-grade liquid handling systems. It supports preventive maintenance by detecting pressure deviations early and integrates seamlessly with automated pipeline monitoring systems to uphold hygienic standards. The solution benefits industries such as dairy, beverage bottling, and food processing, where precise pressure transduction impacts product quality and compliance. Pressure transducer manufacturers focusing on clean process environments recognize this sensor’s value in ensuring consistent production flow and safeguarding equipment integrity.
* Reverse polarity protection, transient overcurrent and overvoltage protection, compliant with EMI protection requirements
| Parameters | Electrical characteristics |
|---|---|
| Pressure type | Absolute Pressure, Gauge Pressure, Sealed Gauge Pressure |
| Pressure range | 0~0.2 ... 0~45 Bar (Customizable) |
| Accuracy | ±0.5% FS; ±0.25% FS; ±0.1% FS |
| Electrical performance | Two wire system; Four wire system |
| Output signal | 4~20mA; RS485 Digital output |
| Power supply voltage | 5V DC, 12V DC, 24V DC |
| Operating temperature | -40℃~120℃ |
| Storage temperature | -40℃~120℃ |
| Electrical connections | Hirschmann Connector |
| Pressure connection | Sanitary Tri-Clamp |
| Material quality - Housing | Stainless Steel; Customizable |
| Material quality - Sensor | Diffused Silicon |
| Material quality - O-shaped sealing ring | NBR / FKM / PTFE |
| Response time | ≤15ms |
| Overload pressure | ＞6~3×FS |
| Burst pressure | ＞10×FS (Please specify during model selection) |
| Long term stability | <0.1% FS/year (Typical); <0.2% FS/year (Maximum) |
| Cycle life | >1 million pressure cycles |
| Protection rating | IP65, IP67, IP68 |
| Working medium | Water, weak acid solutions, mineral oil, alcohols and other liquids and gases |
Product Advantages
Design and Structural Integration Benefits
The HXL-200P’s clamp-type sanitary structure simplifies installation and maintenance within pipeline systems, facilitating quick integration without compromising cleanliness. As a product from a reputable pressure transmitter manufacturer, it incorporates a compact stainless steel housing that combines sensor and signal processing circuitry to reduce footprint and optimize system design. The modular nature of this pressure transducer manufacturer’s offering allows customization of pressure ranges and electrical outputs, aligning with varied operational requirements. Integrated protections against reverse polarity, overcurrent, and overvoltage enhance system resilience under demanding industrial conditions while fulfilling electromagnetic interference standards.
Enhanced Performance and Operational Usability
Engineered for high reliability, this ceramic pressure sensor delivers consistent and precise measurements essential for process control in sensitive sanitary applications. Its robust anti-interference capability ensures stable data transmission crucial for automation system integration. Users benefit from its configurable output signals, allowing easy adaptation to control hardware, thereby reducing commissioning complexity. The product’s resistance to harsh chemical media and temperature extremes supports extended lifecycle performance. Water pump pressure transmitter applications also profit from the sensor’s fast response and accuracy, providing reliable feedback to optimize pump operation and prevent system failures.
Use Scenarios
Sanitary Pressure Control in Food and Beverage Processing
In food and beverage manufacturing plants, the HXL-200P serves as a critical element for maintaining sanitary standards while monitoring pipeline pressure and liquid levels. The industrial environment requires sensors that withstand frequent washdowns and corrosive cleaning agents. This pressure sensor module’s stainless steel construction and high IP rating guarantee reliable operation under these conditions. Its clamp-type design minimizes contamination risks and simplifies maintenance during scheduled shutdowns. Integration with automated control systems allows continuous pressure feedback, enabling precise adjustment of processing parameters that ensure product safety and regulatory compliance within production workflows.
Hydraulic and Pneumatic Systems in Pharmaceutical-grade Food Production
Pharmaceutical-grade food production facilities demand exact pressure measurements in hydraulic and pneumatic components to maintain process accuracy. The HXL-200P pressure transducer manufacturer’s product is specifically designed for these applications, offering explosion-proof versions meeting GB3836.4 standards where necessary. Its swift response time and customizable pressure ranges facilitate fine control of pneumatic actuators and hydraulic pumps used in liquid handling systems, preserving formulation consistency and system integrity. The sensor’s compatibility with diverse output protocols supports seamless integration into advanced PLC or SCADA systems, enhancing automation and predictive maintenance capabilities critical for minimizing downtime.
