- Integrated design with high product stability
- Supports customization of various output signals such as current, voltage, IIC, etc.
- Easy and convenient to use
- Excellent EMC protection and reverse polarity protection
Product Parameters
| Parameters |
Electrical characterisitics |
| Series Name |
RS186MV/RS183MV |
| Type |

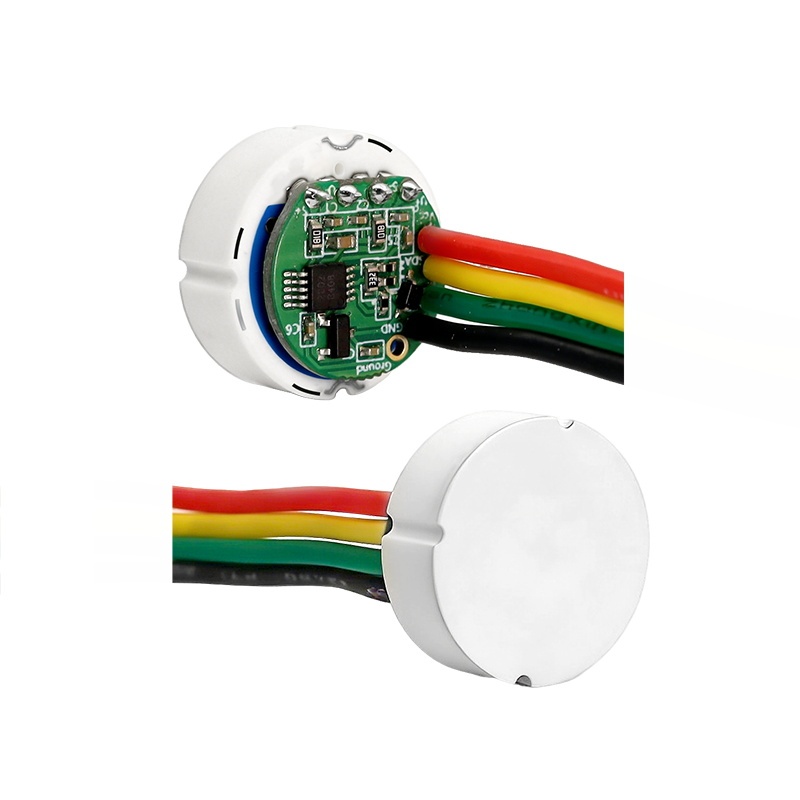

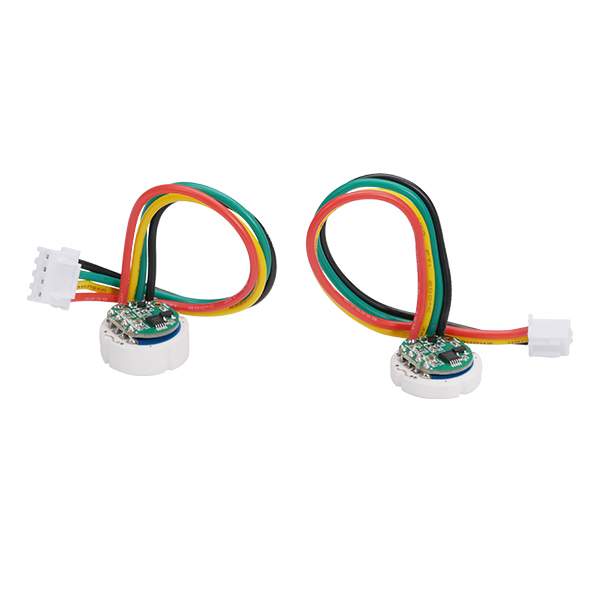

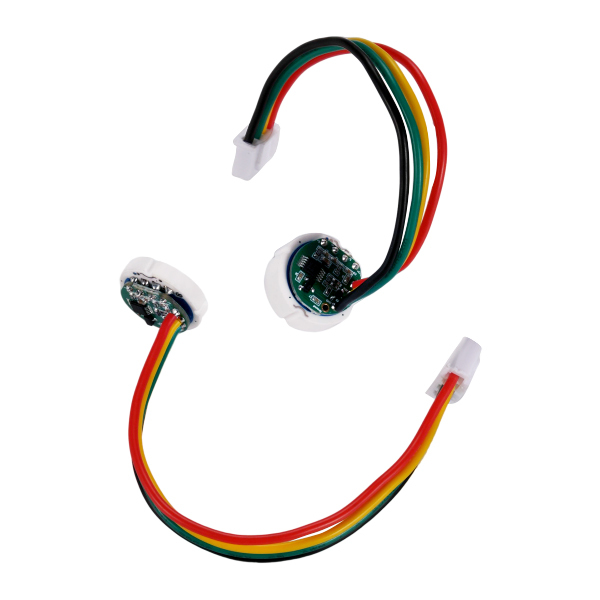

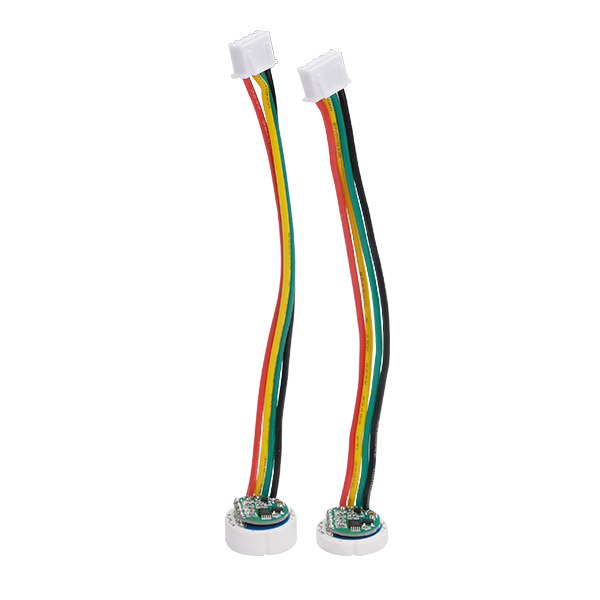

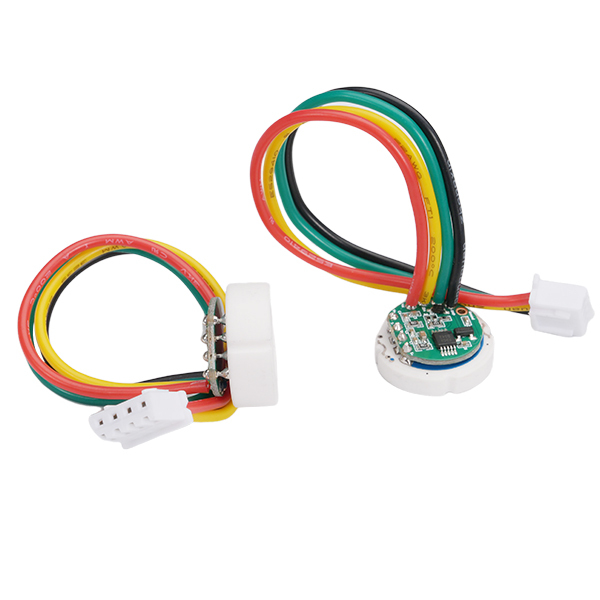

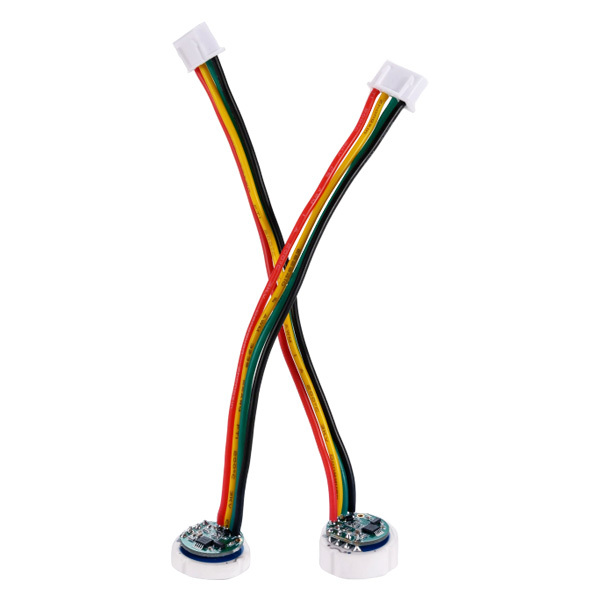

Flush diaphragm module |
| Size (diameter x height) |
φ18x（6.3-6.95）/φ18x （3.3-3.78）mm |
| Supply voltage |
5.0 ± 10% DC (optional 8-32V DC ) |
| Working current |
＜10 mA |
| Output signal |
0.5-4.5V DC |
| Over voltage |
＜ 12V DC |
| Operating temperature |
‘-40 ℃~125℃ |
| Storage temperature |
’-40℃~150 ℃ |
| Nonlinearity |
0.25% FS Max |
| Hysteresis & repeatability |
0.25% FS Max |
| Output accuracy |
※ ± 1.0% Vcc@0-70℃， ± 3.0% Vcc@-40 ℃~125℃ |
| Response time |
＜ 10 mS |
| Zero-point long term stability@25℃ |
Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life |
5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
| Working medium |
oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc |
|
RS186MV/RS183MV
|
|
Thickness 18x6.35mm Series
|
| Product model |
Working pressure range |
Product thickness H |
Overload pressure |
Burst pressure |
| HXL-RS186A005MV |
0-5Bar |
6.30±0.05mm |
>20Bar |
>40Bar |
| HXL-RS186A010MV |
0-10Bar |
6.30±0.05mm |
>30Bar |
>50Bar |
| HXL-RS186A016MV |
0-16Bar |
6.35±0.05mm |
>48Bar |
>80Bar |
| HXL-RS186A020MV |
0-20Bar |
6.35±0.05mm |
>60Bar |
>100Bar |
| HXL-RS186A025MV |
0-25Bar |
6.45±0.05mm |
>75Bar |
>125Bar |
| HXL-RS186A035MV |
0-35Bar |
6.45±0.05mm |
>100Bar |
>150Bar |
| HXL-RS186A050MV |
0-50Bar |
6.55±0.05mm |
>150Bar |
>250Bar |
| HXL-RS186A070MV |
0-70Bar |
6.65±0.05mm |
>200Bar |
>300Bar |
| HXL-RS186A100MV |
0-100Bar |
6.78±0.05mm |
>250Bar |
>400Bar |
| HXL-RS186A200MV |
0-200Bar |
6.95±0.05mm |
>400Bar |
>600Bar |
| Thickness 18×3.50mm Series |
| Product model |
Working pressure range |
Product thickness H |
Overload pressure |
Burst pressure |
| HXL-RS183A005MV |
0-5Bar |
3.30±0.05mm |
>20Bar |
>40Bar |
| HXL-RS183A010MV |
0-10Bar |
3.30±0.05mm |
>30Bar |
>50Bar |
| HXL-RS183A016MV |
0-16Bar |
3.35±0.05mm |
>48Bar |
>80Bar |
| HXL-RS183A020MV |
0-20Bar |
3.35±0.05mm |
>60Bar |
>100Bar |
| HXL-RS183A025MV |
0-25Bar |
3.45±0.05mm |
>75Bar |
>125Bar |
| HXL-RS183A035MV |
0-35Bar |
3.45±0.05mm |
>100Bar |
>150Bar |
| HXL-RS183A050MV |
0-50Bar |
3.55±0.05mm |
>150Bar |
>250Bar |
| HXL-RS183A070MV |
0-70Bar |
3.65±0.05mm |
>200Bar |
>300Bar |
| HXL-RS183A100MV |
0-100Bar |
3.78±0.05mm |
>250Bar |
>400Bar |
High Precision for Accurate MeasurementsBoth the RS186MV and RS183MV sensors are engineered to deliver exceptional accuracy, making them ideal for applications where precise pressure measurements are critical. These sensors excel as engine oil pressure sensors, manifold absolute pressure sensors, and best tire pressure gauges, ensuring optimal operation of automotive and industrial systems.Versatile Application RangeThese sensors are versatile and can be used across a variety of applications, including water pressure sensors, air compressor sensors, and pressure transmitters for HVAC systems. Their flexibility makes them ideal for automotive diagnostics, industrial machinery, and HVAC maintenance.Durability and ReliabilityThe RS186MV and RS183MV sensors are built to withstand harsh environmental conditions. Their durable construction ensures long-lasting performance even in extreme temperatures and moisture-rich environments, making them a reliable choice for both water pressure sensors and pressure transducers.Manufactured by Leading Pressure Sensor SuppliersManufactured by trusted pressure transmitter manufacturers and pressure transducer suppliers, these sensors adhere to the highest standards of quality and performance. They offer unparalleled reliability and are suitable for diverse applications that require accurate pressure monitoring.
