Product Parameters
| Parameters | Electrical characterisitics |

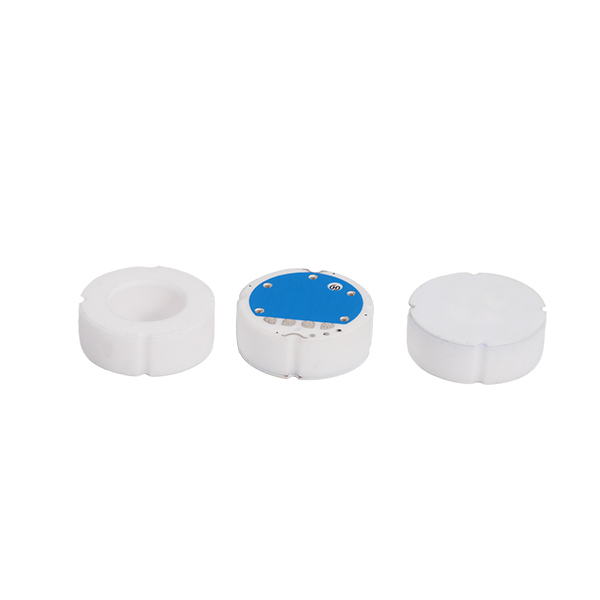

| Series Name | RS186A/ RS183A Series |
| Type | Temperature compensation Flush diaphragm |
| Size (diameter x height) | φ18*6.(**) mm/ φ18*3.(**)mm （height customizable ） |
| Supply voltage | 2-30 V DC |
| Bridge road impedance | ※10.0kΩ ± 30% |
| TCR | ≤ 100 ppm/℃@-40℃~135 ℃ |
| Operating temperature | ’-40℃~150 ℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Temperature dirft | ※ Tco&Tcs 0.02%FS/℃ Max |
| Output accuracy | 0.50% FS Max.@20-25℃ |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Zero offset | ※0±0.4mV/V |
| Sensitivity | ※2.0-4.0mV/V, Typ: 3.0mV/V/FS |
| Response time | ＜ 2mS |
| Insulation resistance | ＞ 2KV |
| long term stability | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
| RS186A /RS183A | ||||
| 6.35mm Series | ||||
| Product Model | Working Pressure Range | Product thickness H | Overload Pressure | Burst Pressure |
| HXL-RS186A005C | 0-5 Bar | 6.30 ± 0.05 mm | ＞ 20 Bar | ＞ 40 Bar |
| HXL-RS186A010C | 0-10 Bar | 6.30 ± 0.05 mm | ＞ 30 Bar | ＞ 50 Bar |
| HXL-RS186A016C | 0-16 Bar | 6.35 ± 0.05 mm | ＞ 48 Bar | ＞ 80 Bar |
| HXL-RS186A020C | 0-20 Bar | 6.35 ± 0.05 mm | ＞60 Bar | ＞ 100 Bar |
| HXL-RS186A025C | 0-25 Bar | 6.45 ± 0.05 mm | ＞ 75 Bar | ＞ 125 Bar |
| HXL-RS186A035C | 0-35 Bar | 6.45 ± 0.05 mm | ＞ 100 Bar | ＞ 150 Bar |
| HXL-RS186A050C | 0-50 Bar | 6.55 ± 0.05 mm | ＞150 Bar | ＞ 250 Bar |
| HXL-RS186A070C | 0-70 Bar | 6.65 ± 0.05mm | ＞200 Bar | ＞ 300 Bar |
| HXL-RS186A100C | 0-100 Bar | 6.78±0.05mm | ＞ 250 Bar | ＞ 400 Bar |
| HXL-RS186A200C | 0-200 Bar | 6.95 ±0.05mm | ＞ 400 Bar | ＞600 Bar |
| 3.50mm Series | ||||
| Product Model | Working Pressure Range | Product thickness H | Overload Pressure （Bar） | Burst Pressure |
| HXL-RS183A005C | 0-5 Bar | 3.30 ± 0.05 mm | ＞ 20 Bar | ＞ 40 Bar |
| HXL-RS183A010C | 01-10Bar | 3.30 ± 0.05 mm | ＞ 30 Bar | ＞ 50 Bar |
| HXL-RS183A016C | 0-16 Bar | 3.35 ± 0.05 mm | ＞48 Bar | ＞ 80 Bar |
| HXL-RS183A020C | 0-20 Bar | 3.35 ±0.05 mm | ＞60 Bar | ＞ 100 Bar |
| HXL-RS183A025C | 0-25 Bar | 3.45±0.05 mm | ＞ 75 Bar | ＞125 Bar |
| HXL-RS183A035C | 0-35 Bar | 3.45±0.05 mm | ＞ 100 Bar | ＞ 150Bar |
| HXL-RS183A050C | 0-50 Bar | 3.55± 0.05mm | ＞ 150 Bar | ＞ 250 Bar |
| HXL-RS183A070C | 0-70 Bar | 3.65 ± 0.05mm | ＞ 200 Bar | ＞ 300 Bar |
| HXL-RS183A100C | 0-100 Bar | 3.78 ± 0.05mm | ＞ 250 Bar | ＞ 400 Bar |
