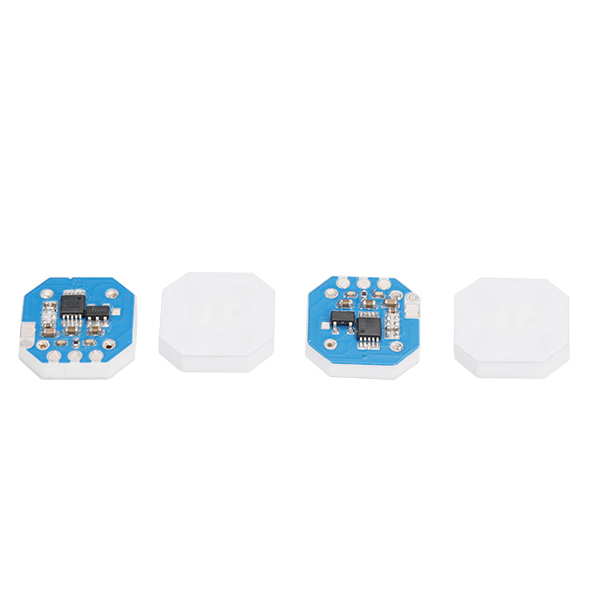

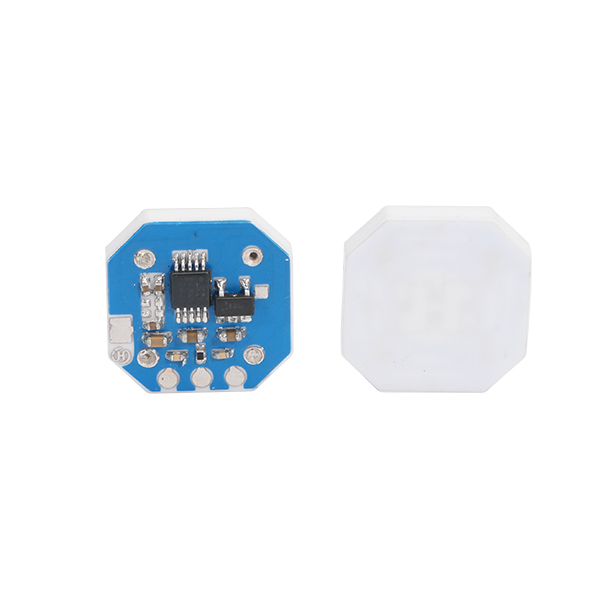

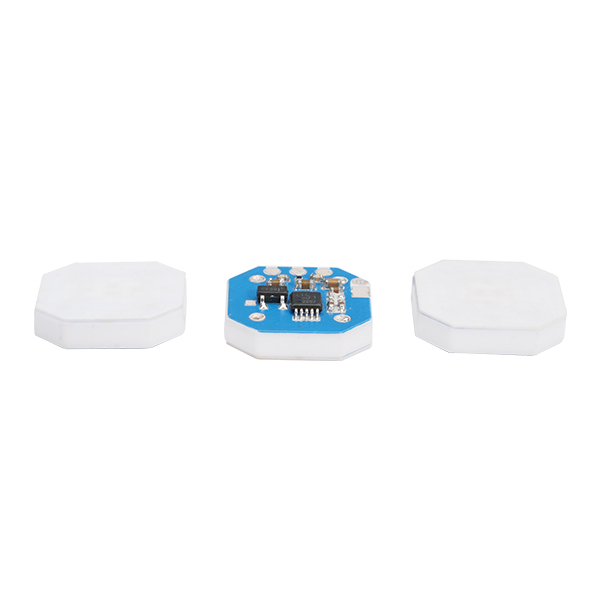

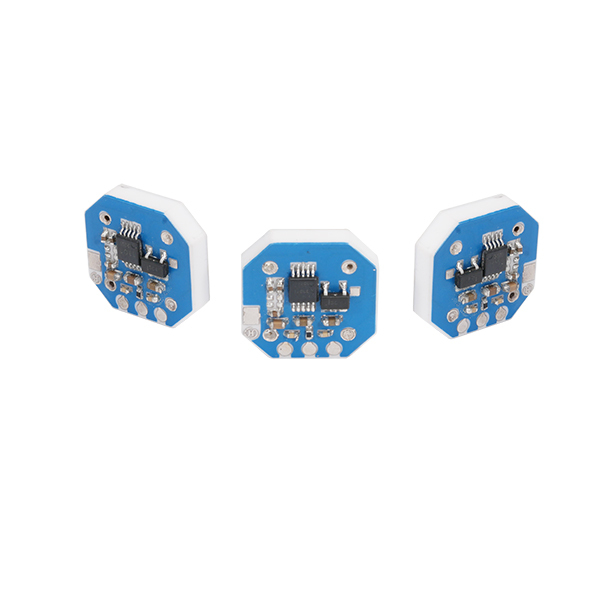

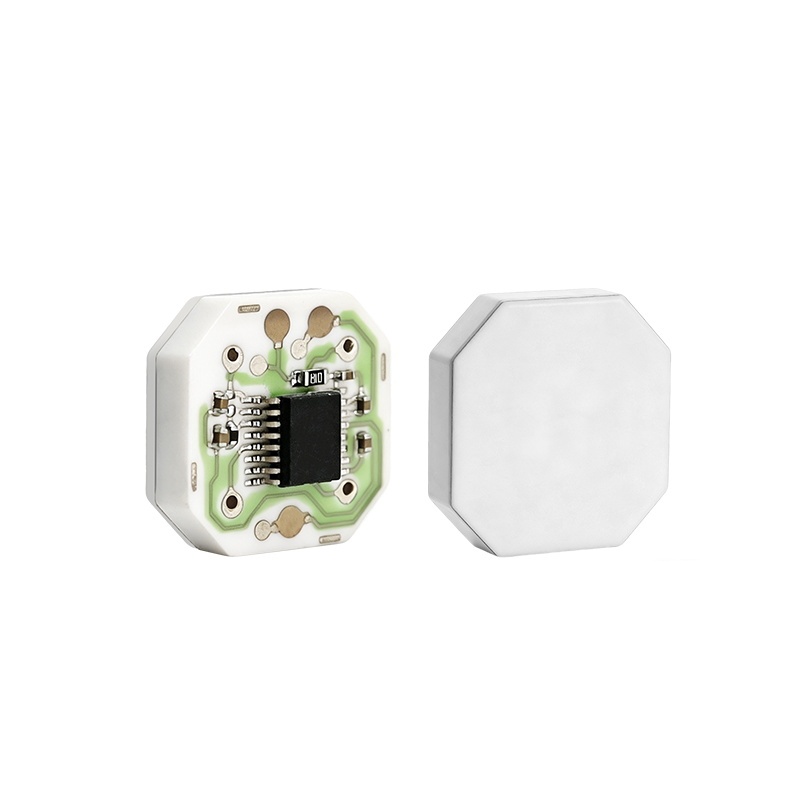

Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module Ceramic Pressure Sensor Module Pressure Sensor IIC Output RS143MV

  • Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module  Ceramic Pressure Sensor Module Pressure Sensor IIC Output   RS143MV
  • Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module  Ceramic Pressure Sensor Module Pressure Sensor IIC Output   RS143MV
  • Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module  Ceramic Pressure Sensor Module Pressure Sensor IIC Output   RS143MV
  • Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module  Ceramic Pressure Sensor Module Pressure Sensor IIC Output   RS143MV
  • Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module  Ceramic Pressure Sensor Module Pressure Sensor IIC Output   RS143MV
  • Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module  Ceramic Pressure Sensor Module Pressure Sensor IIC Output   RS143MV
  • Flush Diaphragm Piezoresistive Ceramic Voltage Output Pressure Sensing Module  Ceramic Pressure Sensor Module Pressure Sensor IIC Output   RS143MV

Main Features

  • Integrated design with high product stability
  • Supports customization of various output signals such as current, voltage, IIC, etc.
  • Easy and convenient to use
  • Excellent EMC protection and reverse polarity protection


Produc
t Parameters

Parameters Electrical Characterisitics
Series Name RS143MV
Type Flush diaphragm module
Size (diameter x height) 14x14x3.0 mm
Supply voltage 5.0V ±10% DC (optional 8-32V DC Power Supply )
Working current <10 mA
Output signal 0.5-4.5V DC
Over voltage  12V DC
Operating temperature ‘-40 ~125
Storage temperature ’-40~150
Nonlinearity 0.25% FS Max
Hysteresis & repeatability 0.25% FS Max
Output accuracy  ± 1.0% Vcc@0-70℃, ± 3.0% Vcc@-40 ~125
Response time  10 mS
Zero-point long term stability@25 Zero@25℃:<0.25 FSO (no time accumulation
Cycle life 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35
Working medium oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc

Product Range
RS143MV  Series
14×14×3.0mm Series
Product model Working pressure range Overload pressure Burst pressure bar
HXL-RS143A005MV 0-5Bar >15Bar >25Bar
HXL-RS143A010MV 0-10Bar >30Bar >50Bar
HXL-RS143A016MV 0-16Bar >48Bar >80Bar
HXL-RS143A020MV 0-20Bar >60Bar >100Bar
HXL-RS143A025MV 0-25Bar >75Bar >125Bar
HXL-RS143A035MV 0-35Bar >90Bar >150Bar
HXL-RS143A050MV 0-50Bar >100Bar >200Bar
HXL-RS143A070MV 0-70Bar >140Bar >300Bar
HXL-RS143A100MV 0-100Bar >200Bar >300Bar
