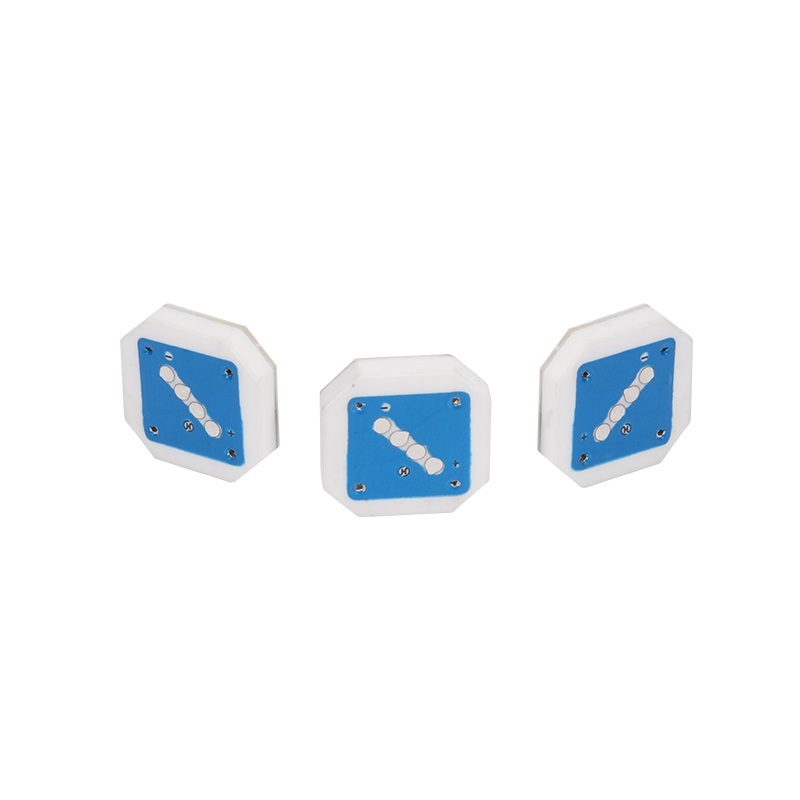

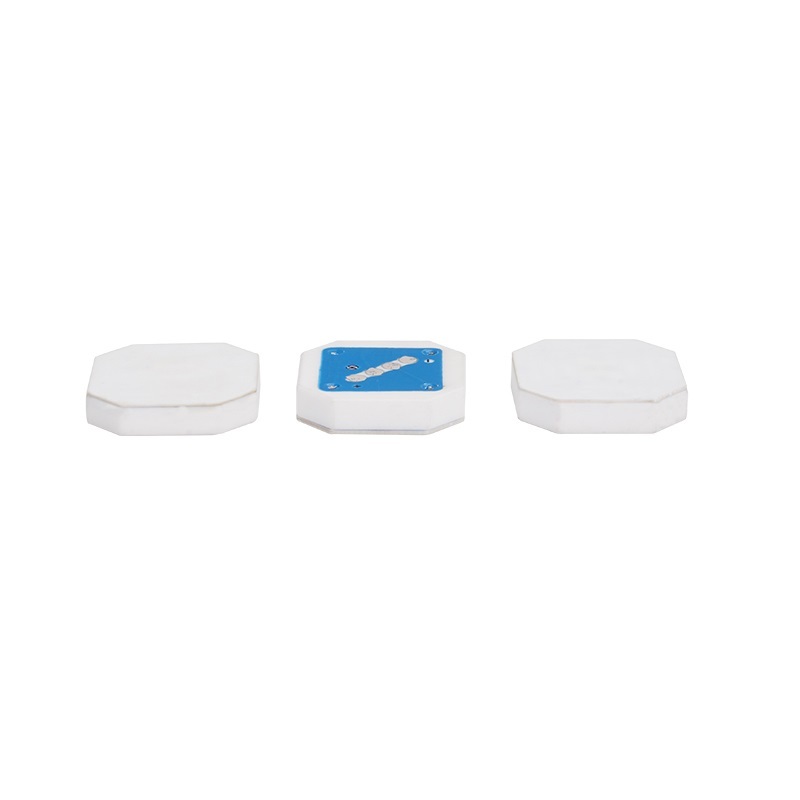

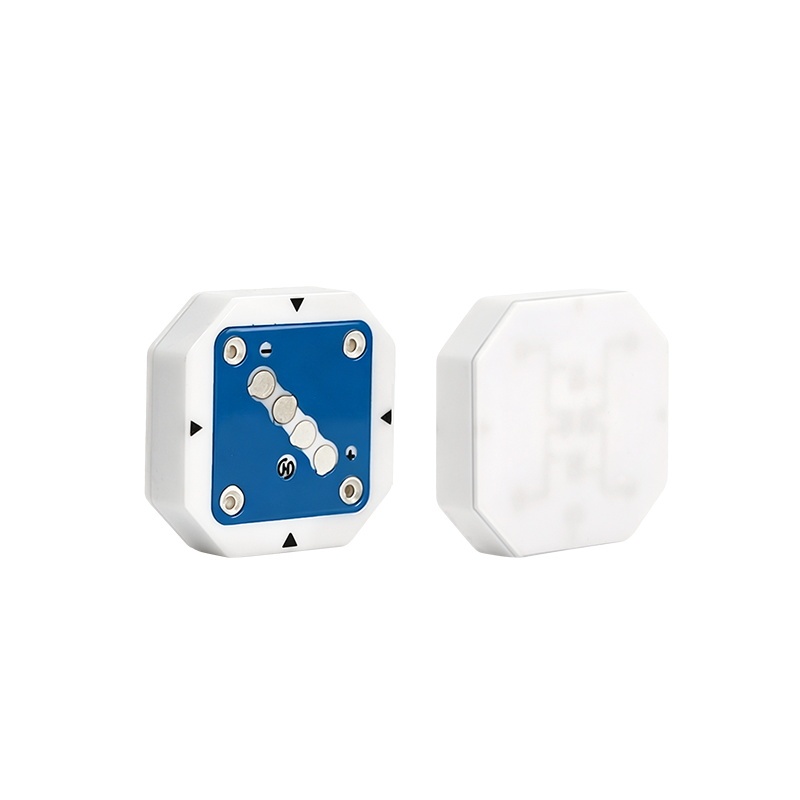

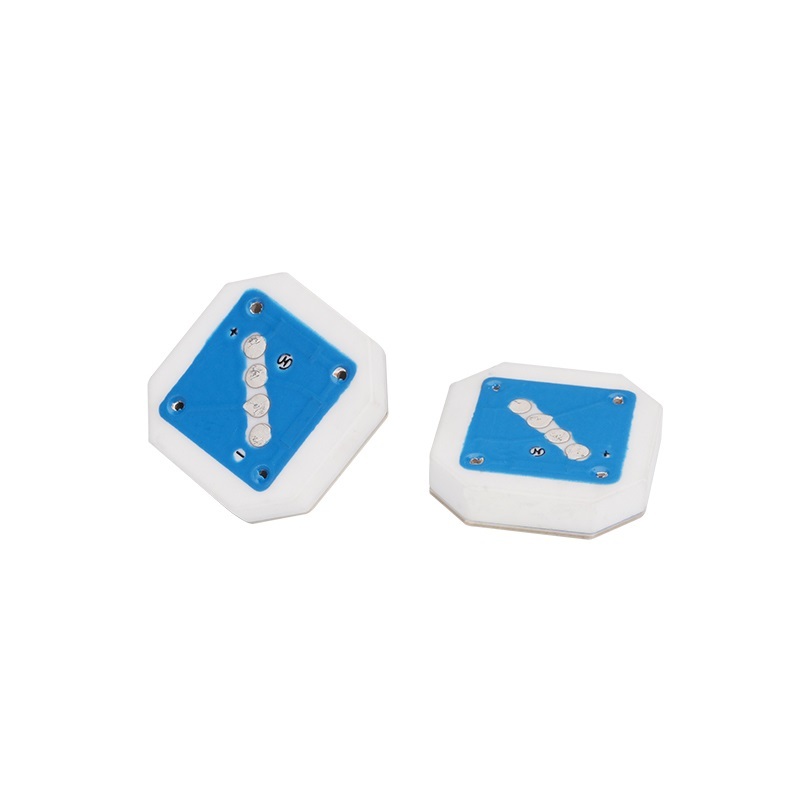

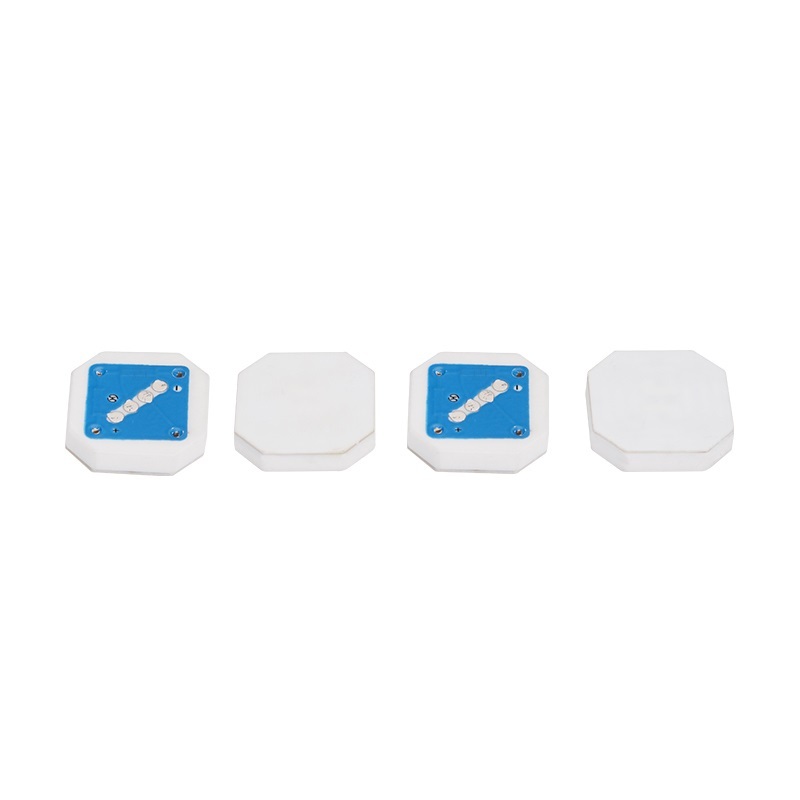

Product Parameters
| Parameters | Electrical characterisitics |
| Series Name | RS143A Series |
| Type | Flush diaphragm |
| Size (Length,width,height) | 14x14x3.05 mm |
| Supply voltage | 2-30 V DC |
| Bridge road impedance | ※5.0kΩ ± 30% |
| TCR | ≤ 100 ppm/℃@-40℃~135 ℃ |
| Operating temperature | ‘-40 ℃~135℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Temperature dirft | ※ Tco&Tcs 0.03%FS/℃ Max / Tco&Tcs 0.05% FS/℃ optional |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Zero offset | ※0±0.4mV/V |
| Sensitivity | ※2.0-4.0mV/V, Typ: 3.0mV/V/FS |
| Response time | ＜ 2mS |
| Insulation resistance | ＞ 2KV |
| Zero-point long term stability@25℃ | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
Product Range
| RS143A | |||
| 14x14x3.0mm Series | |||
| Product Model | Working Pressure Range | Overload Pressure | Burst Pressure |
| HXL-RS143A010C | 0-10 Bar | ＞ 30 Bar | ＞ 50 Bar |
| HXL-RS143A020C | 0-20 Bar | ＞ 60 Bar | ＞ 100 Bar |
| HXL-RS143A035C | 0-35 Bar | ＞ 70 Bar | ＞ 150 Bar |
| HXL-RS143A050C | 0-50 Bar | ＞ 100 Bar | ＞ 200 Bar |
| HXL-RS143A070C | 0-70 Bar | ＞ 140 Bar | ＞ 300 Bar |
| HXL-RS143A100C | 0-100 Bar | ＞ 200 Bar | ＞ 300 Bar |
