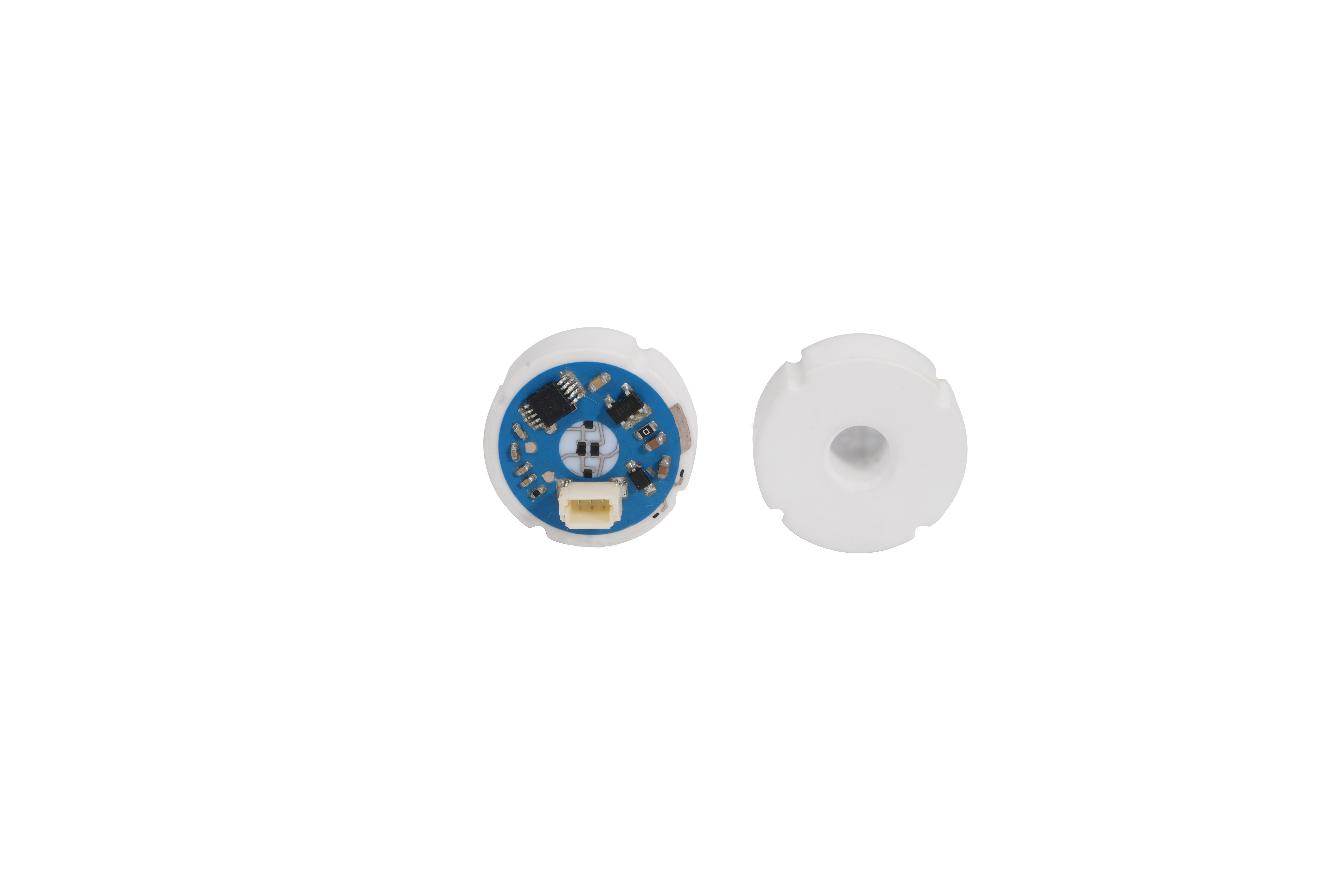

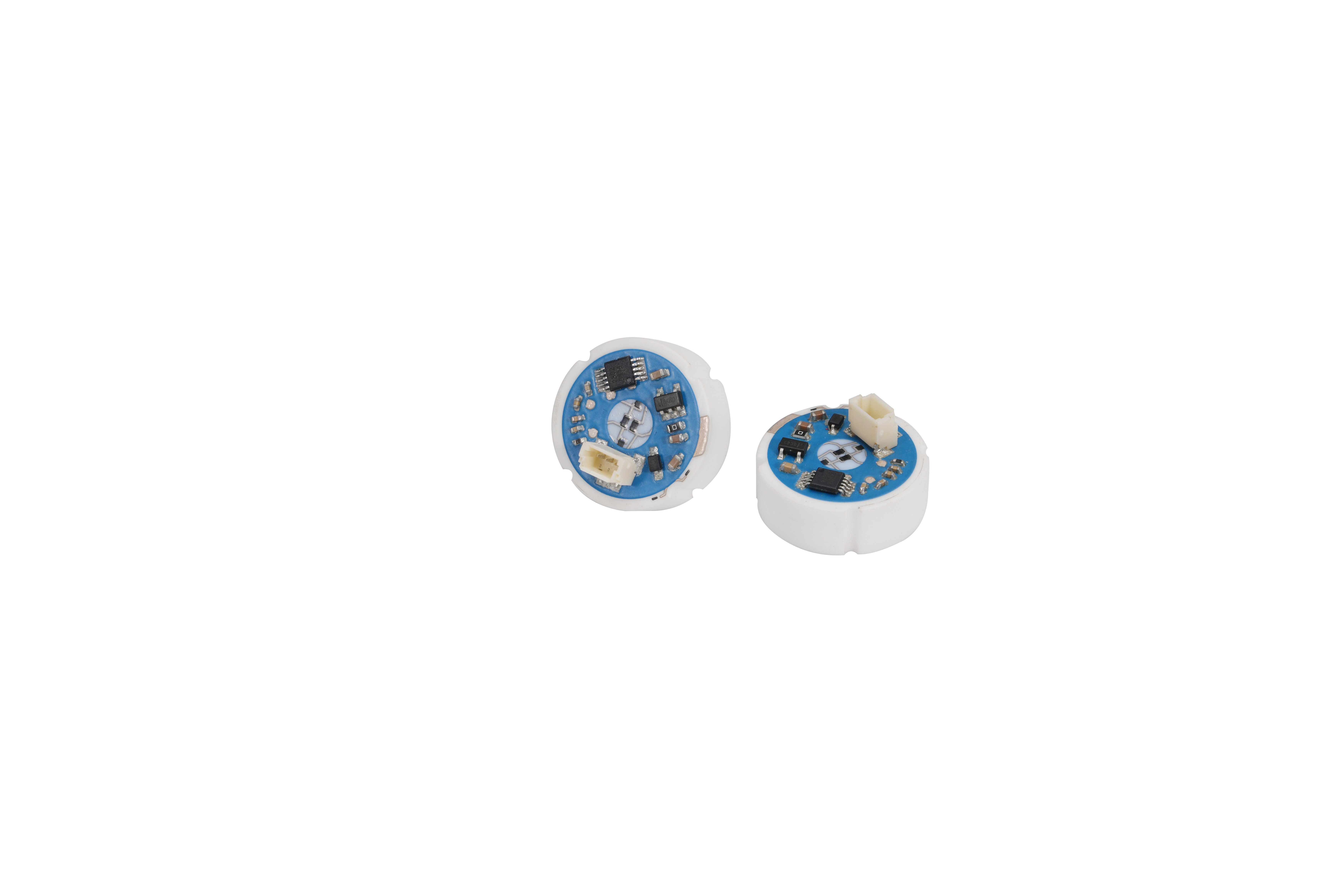

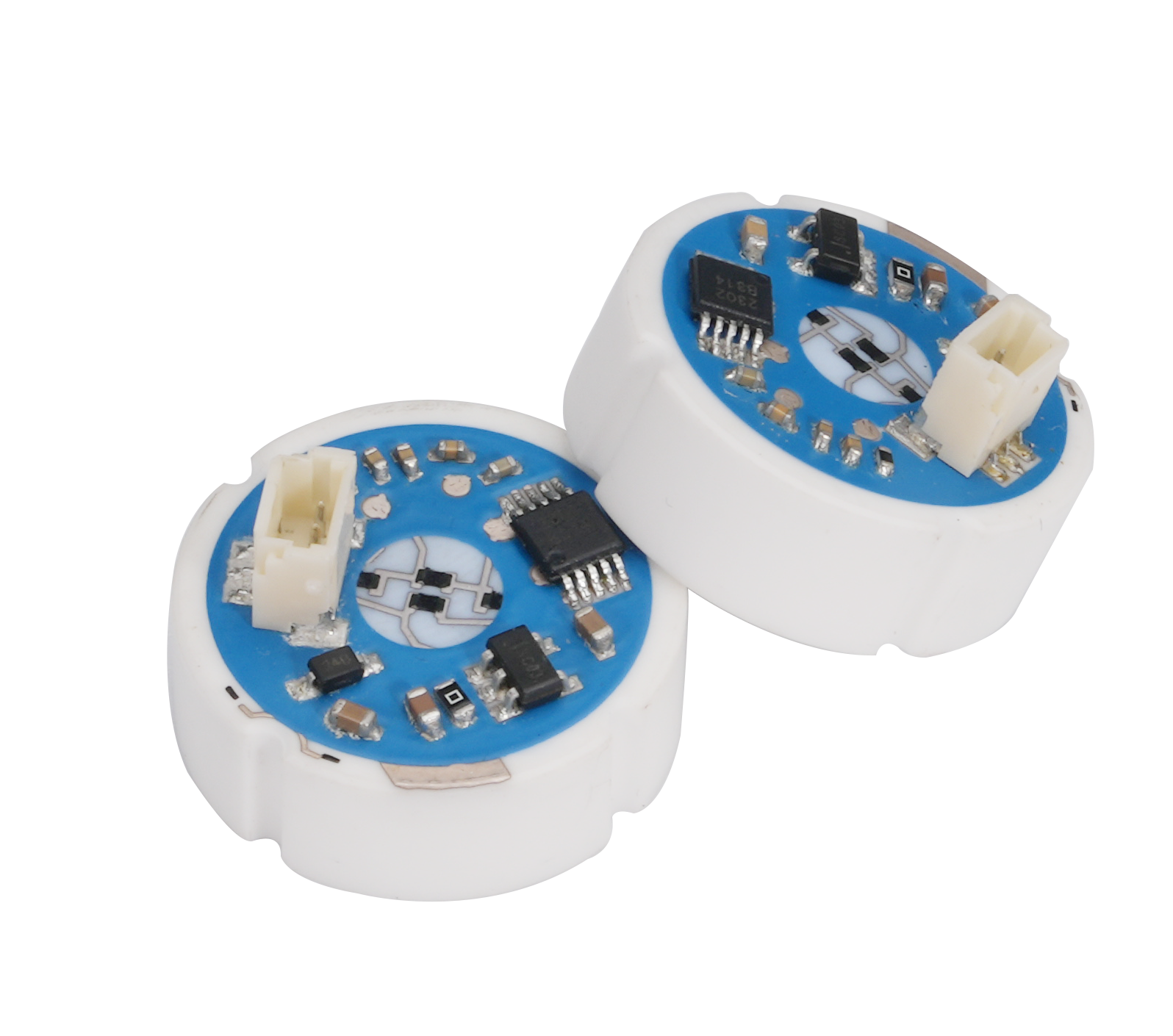

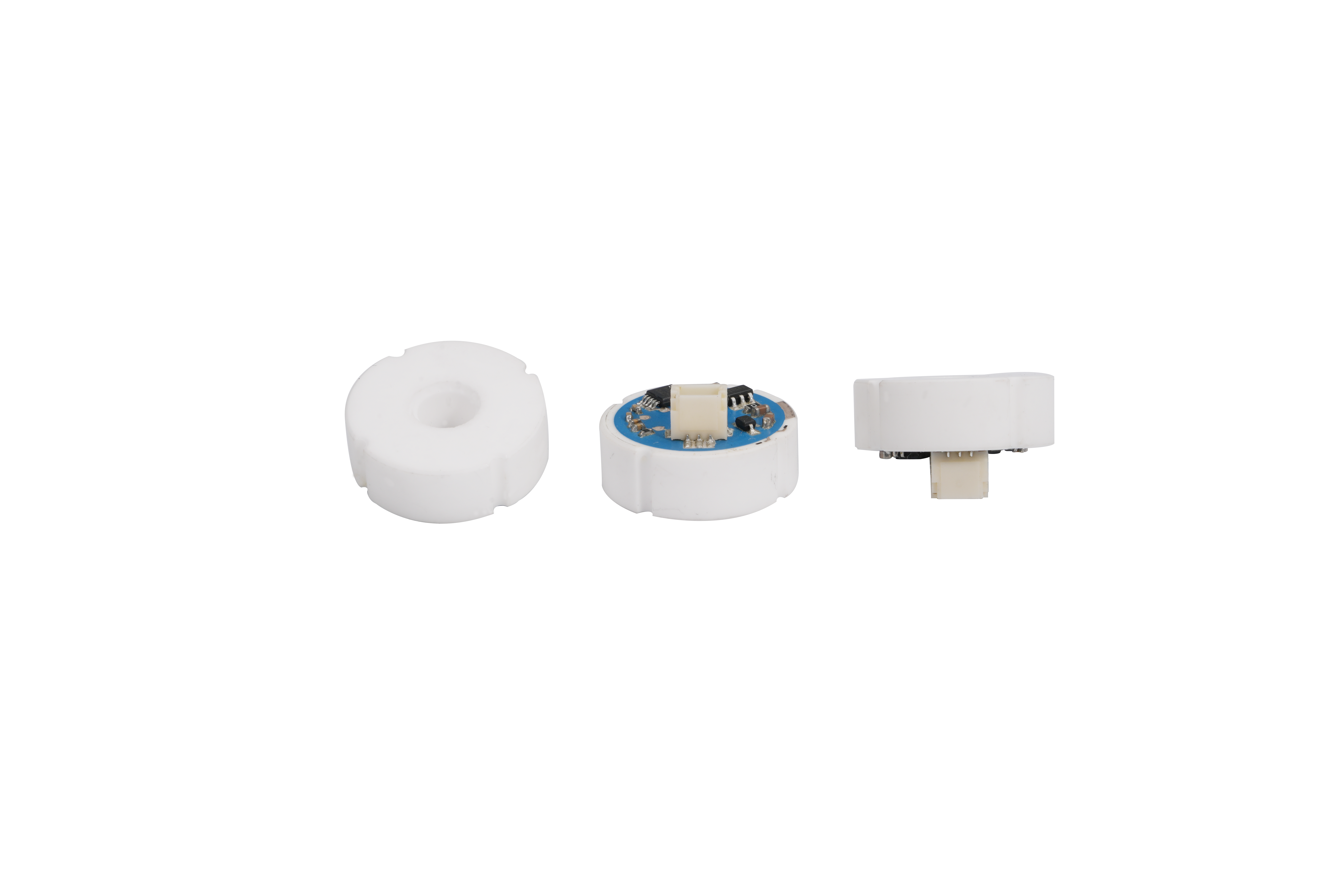

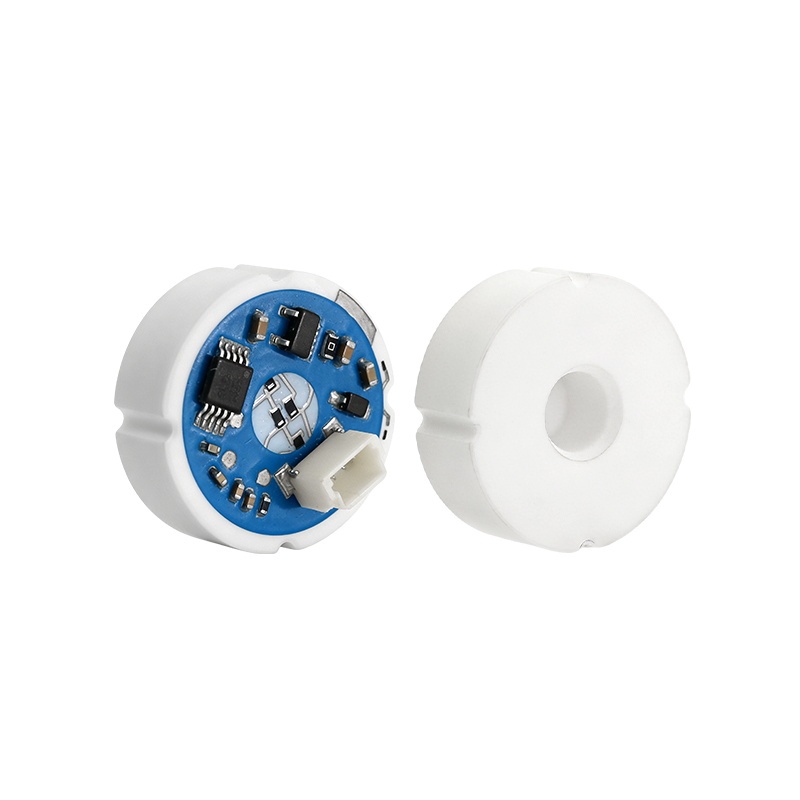

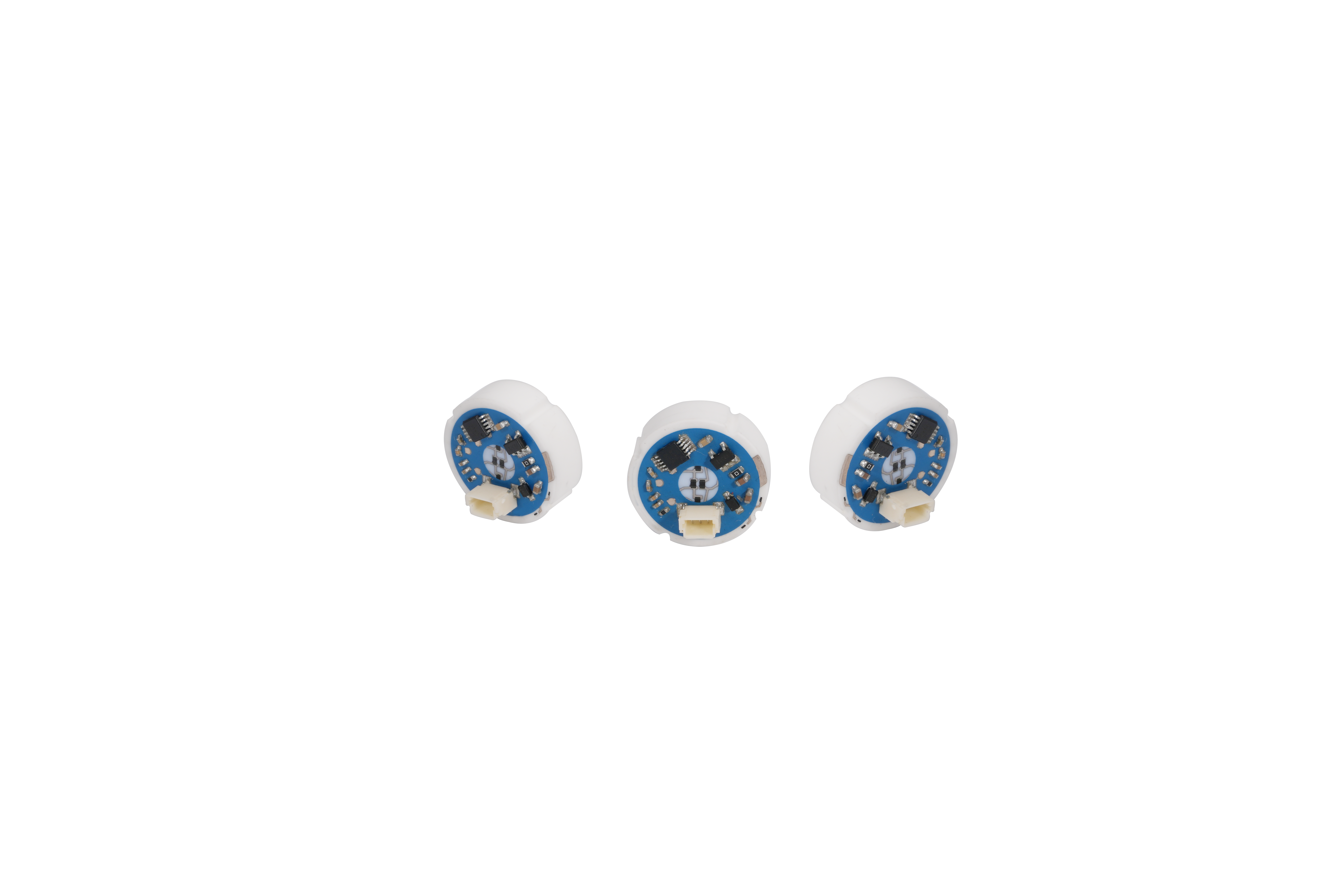

Integrated Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensor Module in Hydraulic Systems 18*6.35mm 18*3.50mm CPS18635MV2

The CPS18635MV2 features advanced capacitive ceramic technology for precise pressure measurements. Built with high durability and reliability, it delivers exceptional performance in various industrial applications. Its integrated design ensures compatibility with multiple systems, offering accurate and consistent readings.
  • Integrated Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensor Module in Hydraulic Systems 18*6.35mm 18*3.50mm CPS18635MV2
  • Integrated Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensor Module in Hydraulic Systems 18*6.35mm 18*3.50mm CPS18635MV2
  • Integrated Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensor Module in Hydraulic Systems 18*6.35mm 18*3.50mm CPS18635MV2
  • Integrated Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensor Module in Hydraulic Systems 18*6.35mm 18*3.50mm CPS18635MV2
  • Integrated Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensor Module in Hydraulic Systems 18*6.35mm 18*3.50mm CPS18635MV2
  • Integrated Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensor Module in Hydraulic Systems 18*6.35mm 18*3.50mm CPS18635MV2

Main Features

  • Integrated design with high product stability
  • Supports customization of various output signals such as current, voltage, IIC, etc.
  • Easy and convenient to use
  • Excellent EMC protection and reverse polarity protection



 Product Parameters

Parameters Electrical characterisitics
Series Name CPS 18635MV2/CPS18350MV2
Type  Monolithic module
Size (diameter x height) φ18x6.35/φ18x3.5mm
Supply voltage 5.0-16.0V DC
Working current <10 mA
Output signal 0.5-4.5V DC
Working pressure 0-50 Bar G
Overload pressure > 100 Bar G
Burst Pressure > 150 Bar G
Operating temperature ‘-40 ℃~125℃
Storage temperature ’-40℃~150 ℃
Nonlinearity 0.25% FS Max
Hysteresis & repeatability 0.25% FS Max
Output accuracy ※ ± 1.0% Vcc@0-70℃, ± 3.0% Vcc@-40 ℃~125℃
Response time < 2mS
Zero-point long term stability@25℃ Zero@25℃:<0.25 FSO (no time accumulation)
Cycle life 2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃
Working medium oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc



Product Range

CPS18635MV2/CPS18350MV2  Series
Thickness 18×6.35mm Series
Product model Working pressure range Overload pressure Burst pressure (Bar)
HXL-CPS18635G002MV2 0-2Bar 2 4
HXL-CPS18635G005MV2 0-5Bar 10 15
HXL-CPS18635G010MV2 0-10Bar 20 30
HXL-CPS18635G016MV2 0-16Bar 32 48
HXL-CPS18635G020MV2 0-20Bar 40 60
HXL-CPS18635G025MV2 0-25Bar 50 75
HXL-CPS18635G030MV2 0-30Bar 60 90
HXL-CPS18635G050MV2 0-50Bar 100 150
HXL-CPS18635G100MV2 0-100Bar 200 300
HXL-CPS18635G200MV2 0-200Bar 300 500
HXL-CPS18635G300MV2 0-300Bar 450 600
HXL-CPS18635G400MV2 0-400Bar 600 /
HXL-CPS18635G600MV2 0-600Bar 800 /
Thickness 18×3.50mm Series
Product model Working pressure range Overload pressure Burst pressure
HXL-CPS18350G005MV2 0-5Bar 10 15
HXL-CPS18350G010MV2 0-10Bar 20 30
HXL-CPS18350G020MV2 0-20Bar 40 60
HXL-CPS18350G030MV2 0-30Bar 60 90
HXL-CPS18350G050MV2 0-50Bar 100 150
HXL-CPS18350G100MV2 0-100Bar 200 300






High Accuracy for Critical Applications
The CPS18635MV2 delivers precise pressure measurements with high accuracy, making it the ideal solution for engine oil pressure sensors, manifold absolute pressure sensors, and best tire pressure gauges. Its performance is key for automotive diagnostics, HVAC systems, and industrial machinery.

Wide Range of Applications
This pressure sensor is suitable for a diverse set of applications, including water pressure sensors, air compressor sensors, and pressure sensors for water treatment. It provides accurate data for monitoring critical systems, ensuring optimal performance in both industrial and commercial settings.

Durable and Reliable Construction
Built with high-quality materials, the CPS18635MV2 is designed to withstand extreme environmental conditions. It’s suitable for use in harsh climates and provides long-term, reliable performance. Whether you need a water pressure sensor for your HVAC system or a pressure transducer for industrial applications, this sensor ensures durability and precision.

Manufactured by Leading Pressure Sensor Suppliers
Manufactured by top-rated pressure transmitter manufacturers, the CPS18635MV2 adheres to the highest standards of quality and precision. It is backed by a trusted brand known for its commitment to excellence in pressure sensor design and manufacturing.
