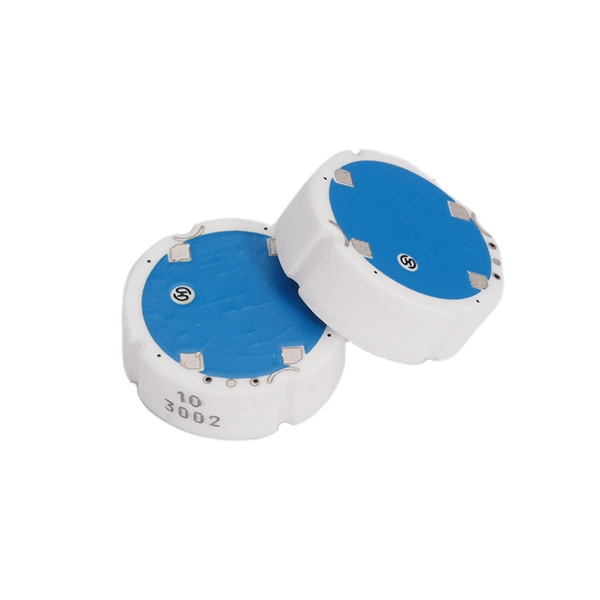

- High-Quality Ceramic Design: These pressure sensors are built with durable ceramic material, ensuring long-lasting performance and resistance to wear.
- Precision Measurement: Designed for highly accurate pressure readings, making them suitable for critical applications in various industries.
- Wide Range of Applications: Ideal for fluid systems, gas pressure monitoring, and hydraulic systems requiring stable and consistent readings.
- Compact and Versatile: Lightweight and easy to integrate into different systems, offering flexibility for both industrial and commercial setups.
- Environmental Resistance: With strong resistance to temperature fluctuations and corrosive environments, these sensors perform well under challenging conditions.
Applications:
- Industrial pressure monitoring systems.
- Hydraulic and pneumatic equipment.
- Gas and liquid pressure measurement in commercial and industrial setups.
- Control systems requiring precise pressure feedback.
Product Advantages:
- Ceramic base with high elasticity mold
- Excellent corrosion and wear resistance
- Shock resistant
- Wide temperature range
- Internal active temperature compensation with low temperature drift coefficient
- Compact size, easy to package
- Patented circuit layout design
Product Parameters
Parameters |
Electrical characterisitics |
Series Name |
CPS18635H/ CPS350H Series |
Type |
Temperature compensation Monolithic |
Size (diameter x height) |
φ18*6.35 mm/ φ18*3.50mm |
Supply voltage |
2-30 V DC |
Bridge road impedance |
※10.0kΩ ± 30% |
TCR |
≤ 100 ppm/℃@-40℃~125 ℃ |
Operating temperature |
‘-40 ℃~135℃ |
Storage temperature |
’-40℃~150 ℃ |
Temperature dirft |
※ Tco&Tcs 0.02%FS/℃ Max |
Nonlinearity |
0.25% FS Max |
Hysteresis & repeatability |
0.25% FS Max |
Zero offset |
※0±0.4mV/V |
Sensitivity |
※2.0-4.0mV/V, Typ: 3.0mV/V/FS |
Response time |
< 2mS |
Insulation resistance |
> 2KV |
Zero-point long term stability@25℃ |
Zero@25℃:<0.25 FSO (no time accumulation) |
Cycle life |
2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
Product Range
CPS18635H /CPS18635H |
6.35mm Series |
Product Model |
Working Pressure Range |
Overload Pressure |
Burst Pressure |
HXL-CPS18635G002F |
0-2 Bar |
2 |
4 |
HXL-CPS18635G005F |
0-5 Bar |
10 |
15 |
HXL-CPS18635G010F |
0-10 Bar |
20 |
30 |
HXL-CPS18635G016F |
0-16 Bar |
32 |
48 |
HXL-CPS18635G020F |
0-20 Bar |
40 |
60 |
HXL-CPS18635G025F |
0-25 Bar |
50 |
75 |
HXL-CPS18635G030F |
0-30 Bar |
60 |
90 |
HXL-CPS18635G050F |
0-50 Bar |
100 |
150 |
HXL-CPS18635G100F |
0-100 Bar |
200 |
300 |
HXL-CPS18635G200F |
0-200 Bar |
300 |
500 |
HXL-CPS18635G300F |
0-300 Bar |
450 |
600 |
HXL-CPS18635G400F |
0-400 Bar |
600 |
/ |
HXL-CPS18635G600F |
0-600 Bar |
800 |
/ |
|
|
|
|
3.50mm Series |
Product Model |
Working Pressure Range |
Overload Pressure |
Burst Pressure |
HXL-CPS18350G005H |
0-5 Bar |
10 |
15 |
HXL-CPS18350G010H |
0-10 Bar |
20 |
30 |
HXL-CPS18350G016H |
0-16 Bar |
32 |
48 |
HXL-CPS18350G020H |
0-20 Bar |
40 |
60 |
HXL-CPS18350G025H |
0-25 Bar |
50 |
75 |
HXL-CPS18350G030H |
0-30 Bar |
60 |
90 |
HXL-CPS18350G050H |
0-50 Bar |
100 |
150 |
HXL-CPS18350G100H |
0-100 Bar |
200 |
300 |
High Precision MeasurementsThe CPS18635H / CPS18350H pressure sensors provide highly accurate measurements, making them an ideal choice for industries requiring precision. Whether you need to measure air pressure in automotive systems or water pump pressure, these sensors offer reliability and stability.Versatile Application RangeThese sensors are suitable for multiple applications such as automotive systems (engine oil pressure sensor), HVAC systems (pressure sensor for air conditioners), and water pumps. Their versatile design ensures functionality across a wide range of environments.Durability and ReliabilityDesigned to withstand challenging conditions, the CPS18635H and CPS18350H sensors offer long-lasting durability. Their robust construction ensures they operate under high pressure and in tough environments, providing consistent performance over time.Industry-leading QualityManufactured by one of the top pressure sensor manufacturers, these sensors maintain industry standards for quality and durability. They are engineered to meet the rigorous demands of both automotive and industrial pressure sensing applications.
