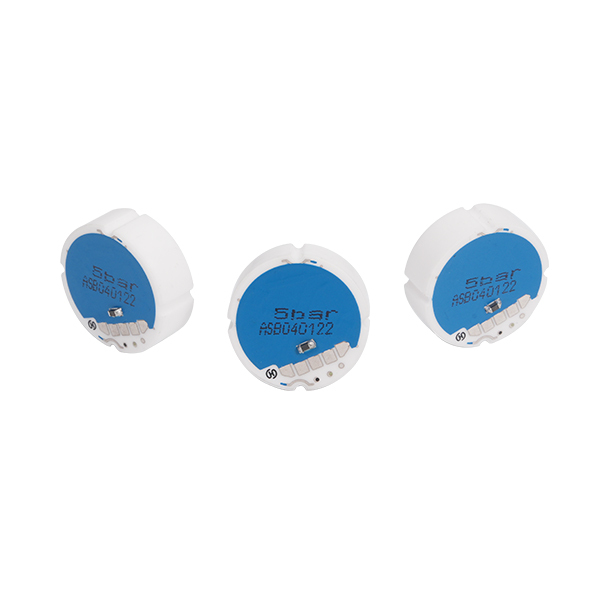

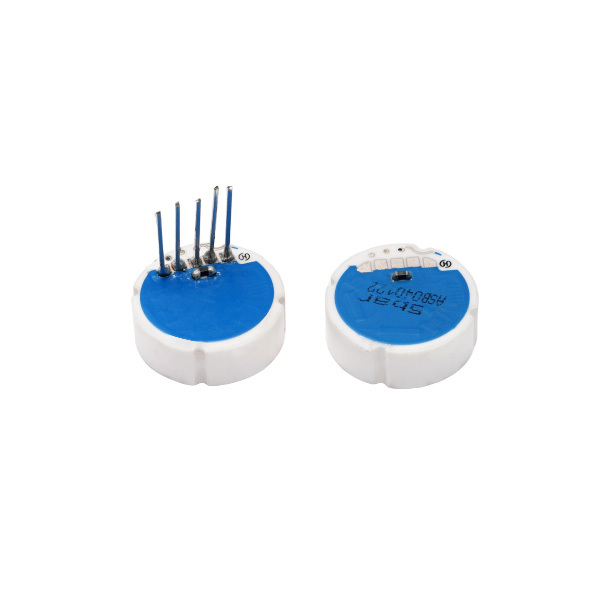

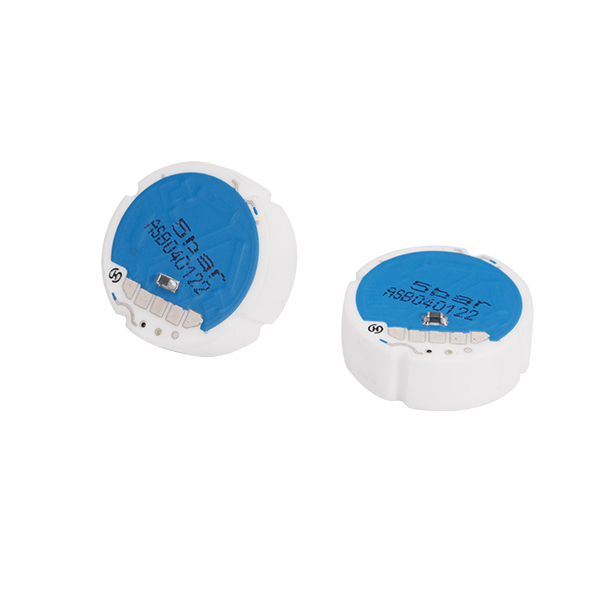

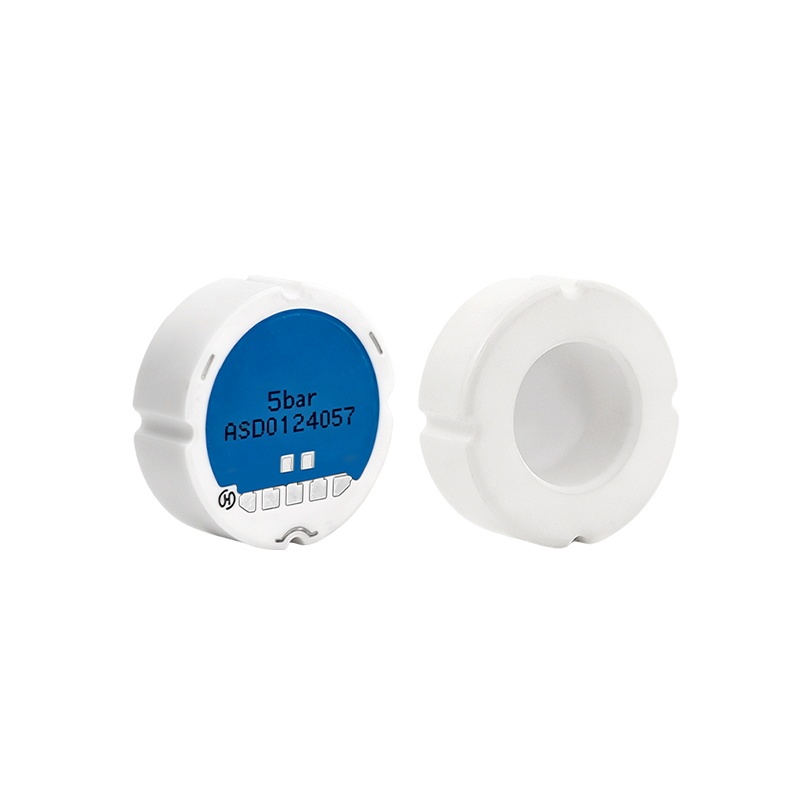

Combined Pressure & Temperature Monolithic Piezoresistive Ceramic Pressure Sensor Gauge Pressure Measurement Ceramic pressure sensor for oil and gas industry CPS18635E_CPS18350E

  • Combined Pressure & Temperature Monolithic Piezoresistive Ceramic Pressure Sensor Gauge Pressure Measurement  Ceramic pressure sensor for oil and gas industry CPS18635E_CPS18350E
  • Combined Pressure & Temperature Monolithic Piezoresistive Ceramic Pressure Sensor Gauge Pressure Measurement  Ceramic pressure sensor for oil and gas industry CPS18635E_CPS18350E
  • Combined Pressure & Temperature Monolithic Piezoresistive Ceramic Pressure Sensor Gauge Pressure Measurement  Ceramic pressure sensor for oil and gas industry CPS18635E_CPS18350E
  • Combined Pressure & Temperature Monolithic Piezoresistive Ceramic Pressure Sensor Gauge Pressure Measurement  Ceramic pressure sensor for oil and gas industry CPS18635E_CPS18350E
  • Combined Pressure & Temperature Monolithic Piezoresistive Ceramic Pressure Sensor Gauge Pressure Measurement  Ceramic pressure sensor for oil and gas industry CPS18635E_CPS18350E
  • Combined Pressure & Temperature Monolithic Piezoresistive Ceramic Pressure Sensor Gauge Pressure Measurement  Ceramic pressure sensor for oil and gas industry CPS18635E_CPS18350E

Main Features

  • Pressure and temperature combined into one
  • Ceramic base with high elasticity mold
  • Excellent corrosion and wear resistance
  • Shock resistant
  • Wide temperature range
  • Internal active temperature compensation with low temperature drift coefficient
  • Compact size, easy to package
  • Patented circuit layout design


Product Parameter


Parameters Electrical Characterisitics
Series Name CPS18635E/ CPS350E Series
Type combined pressure & temperature Monolithic
Size (diameter x height) φ18*6.35 mm/φ 18*3.50mm
Supply voltage 2-30 V DC
Bridge road impedance ※10.0kΩ ± 30%
TCR ≤ 100 ppm/℃@-40℃~125 ℃
NTC ※ 10KΩ±1%@25℃ ,B( 25℃/85 ℃) =3434K ±1%
Operating temperature ‘-40 ℃~135℃
Storage temperature ’-40℃~150 ℃
Temperature dirft   ※ Tco&Tcs 0.02%FS/℃ Max
Nonlinearity 0.25% FS Max
Hysteresis & repeatability 0.25% FS Max
Zero offset ※0±0.4mV/V
Sensitivity ※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time < 2mS
Insulation resistance > 2KV
Zero-point long term stability@25℃ Zero@25℃:<0.25 FSO (no time accumulation)
Cycle life 2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃


Product Range

CPS18635E /CPS18350E
6.35mm Series
Product Model Working Pressure Range Overload Pressure Burst Pressure
HXL-CPS18635G002T 0-2 Bar 4 6
HXL-CPS18635G005T 0-5 Bar 10 15
HXL-CPS18635G010T 0-10 Bar 20 30
HXL-CPS18635G016T 0-16 Bar 32 48
HXL-CPS18635G020T 0-20 Bar 40 60
HXL-CPS18635G025T 0-25 Bar 50 75
HXL-CPS18635G030T 0-30 Bar 60 90
HXL-CPS18635G050T 0-50 Bar 100 150
HXL-CPS18635G100T 0-100 Bar 200 300
HXL-CPS18635G200T 0-200 Bar 300 500
HXL-CPS18635G300T 0-300 Bar 450 600
HXL-CPS18635G400T 0-400 Bar 600 /
HXL-CPS18635G600T 0-600 Bar 800 /
3.50mm Series
Product Model Working Pressure Range Overload Pressure Burst Pressure
HXL-CPS18350G005T 0-5 Bar 10 15
HXL-CPS18350G010T 0-10 Bar 20 30
HXL-CPS18350G020T 0-20 Bar 40 60
HXL-CPS18350G030T 0-30 Bar 60 90
HXL-CPS18350G050T 0-50 Bar 100 150
HXL-CPS18350G100T 0-100 Bar 200 300





Superior Accuracy and Reliability
The CPS18635E and CPS18350E pressure sensors are engineered to provide precise pressure measurements, ensuring optimal performance in engine oil pressure sensors, best tire pressure gauge, and manifold absolute pressure sensor applications. Whether you're testing tire pressure or checking oil levels, you can trust the accuracy of these sensors.

Versatile Applications
These sensors are designed for a wide range of applications, including pressure sensor for air conditioner, pressure sensor for water pump, automotive diagnostics, and industrial use. Their versatility allows integration into multiple systems seamlessly, whether for high-precision tire pressure measurement or HVAC performance monitoring.

Built for Durability
Crafted from high-quality materials, the CPS18635E and CPS18350E sensors are built to withstand harsh conditions. With their resistance to corrosion, high temperatures, and moisture, these sensors are perfect for automotive and industrial environments, where durability and longevity are paramount.

Manufactured by Trusted Pressure Sensor Experts
As reliable pressure sensor manufacturers, these sensors are produced to meet the highest standards in quality and performance. Whether you are sourcing pressure transducers or pressure sensors, the CPS18635E and CPS18350E are an excellent choice for demanding applications.




About Us


Huaxinlian Technology is a professional and innovative company dedicated to the design, manufacturing, and supply of high-precision ceramic pressure sensors. Established with the aim of providing reliable, durable, and highly accurate pressure sensing solutions, we have been a trusted partner for industries such as automotive, HVAC, process control, and industrial automation for over 7 years.

Our main products include ceramic pressure transducers, sensor cores, modules, and transmitters, which are widely used in various fields to monitor and measure pressure in both harsh and routine environments. We have invested heavily in our manufacturing facility, which is equipped with state-of-the-art automated production lines, ensuring that our products meet the highest quality standards.



Why Choose Us

  • Over 7 years of industry experience
  • Advanced automated production lines
  • 25+ patents and global certifications
  • Precision and consistent quality
  • Strong R&D and innovation focus



FAQ

1.Who are we?
Huaxinlian Technology is a leading manufacturer and supplier of ceramic pressure sensors. We specialize in designing and producing high-precision ceramic pressure transducers, sensor cores, and modules. Our products are widely used across various industries, including automotive, HVAC, process control, and more.



2.How can we guarantee quality?
Quality assurance is a cornerstone of our operations. We adopt advanced automated production lines to ensure consistency and high precision in manufacturing. Each product undergoes rigorous testing at every stage of production to meet international standards. We also hold global certifications, including ISO 9001 and IATF 16949, to ensure that our products comply with the highest quality standards.



3.What can you buy from us?
We offer a wide range of ceramic pressure sensing products, including:

  • Pressure Transducers: These sensors convert pressure into an electrical signal, providing accurate and real-time pressure measurements for a variety of industrial applications.
  • Pressure Sensor Cores: Our sensor cores are the heart of pressure sensing technology, providing reliable and precise data for a range of pressure monitoring systems.
  • Pressure Modules: These modules are integrated systems that combine sensors, electronics, and output interfaces to provide seamless pressure sensing solutions.
  • Pressure Transmitters: Used for transmitting accurate pressure data to remote monitoring systems, our pressure transmitters are ideal for applications requiring long-distance data transmission.
  • Custom Solutions: We also provide custom-designed solutions tailored to specific customer requirements, whether for unique environments, sizes, or specifications.



4.Why should you buy from us instead of other suppliers?
There are several reasons why Huaxinlian Technology stands out from other suppliers:

  • Proven Industry Expertise: With over 7 years of experience in the pressure sensor industry, we have developed a deep understanding of customer needs and technical challenges, ensuring we deliver the best solutions.
  • Cutting-Edge Technology: We leverage advanced automated production techniques and continuous innovation in sensor design to provide high-performance products that meet the evolving needs of our customers.
  • Reliable Quality: Our commitment to quality is reinforced by our adherence to global certifications (ISO 9001, IATF 16949) and strict testing protocols, ensuring that every sensor we produce meets the highest standards of precision and durability.
  • Comprehensive Range: We offer a diverse range of products, from standard solutions to custom-tailored designs, ensuring we can meet the specific needs of various industries and applications.
  • Excellent Customer Support: Our team is dedicated to providing exceptional customer service, offering technical support, quick response times, and a focus on long-term partnerships.



5.What services can we provide?
We offer a full suite of services to ensure that our customers receive the best possible experience:

  • OEM & ODM Services: We provide Original Equipment Manufacturing (OEM) and Original Design Manufacturing (ODM) services, allowing customers to get customized products that match their specific technical and design requirements.
  • Research and Development Support: Our in-house R&D team works closely with customers to develop new solutions and refine existing products, ensuring that we can address unique challenges and provide cutting-edge technology.
  • Testing and Calibration: We offer thorough testing and calibration services to ensure that every product meets the required specifications for performance and accuracy.
  • After-Sales Support: Our after-sales support includes troubleshooting, maintenance guidance, and replacement services, ensuring that your products continue to perform reliably long after purchase.
  • Consultation Services: We provide expert consultation services to help you choose the right products for your specific applications, ensuring that you make informed decisions that will enhance the efficiency and safety of your operations.
