Series Name
|
RS186A/RS183A
|
|
Type
|

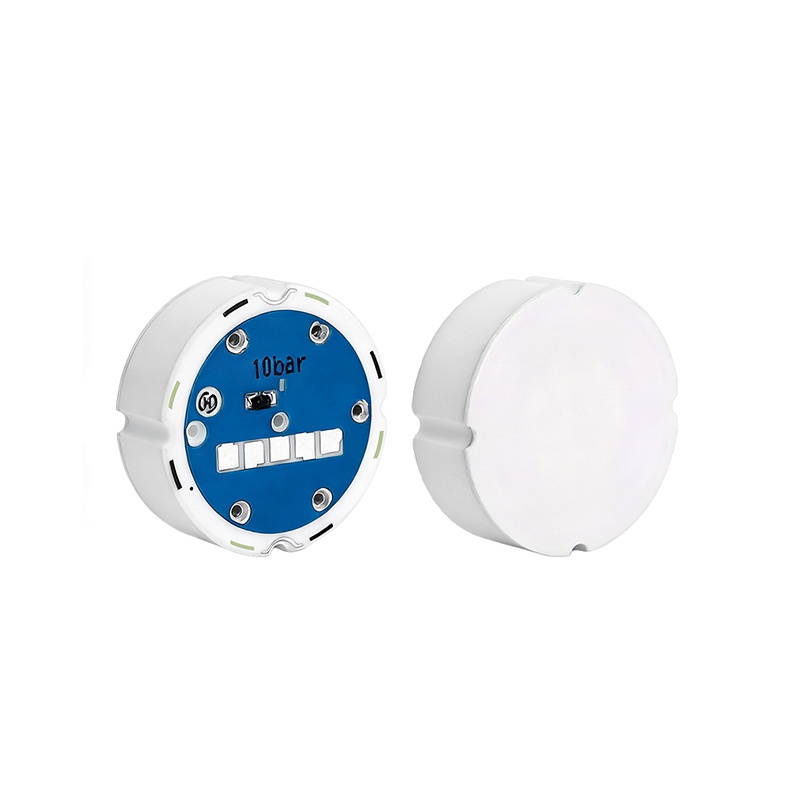

Combined Pressure & Temperature Flush Diaphragm Piezoresistive Ceramic Pressure Sensor
|
|
Measured pressure type
|
Gauge Pressure 、 Absolute Pressure
|
|
Size (diameter x height)
|
φ18mm*6.（**）mm/φ18mm*3.（**）mm
|
|
Supply voltage
|
2-30V DC
|
|
Bridge road impedance
|
10.0KΩ±30%
|
|
TCR
|
≤100ppm/℃@-40℃~125℃
|
|
Working pressure
|
5/10/16/20/25/35/50/100Bar
|
|
Overload pressure
|
>2×FS
|
|
Burst pressure
|
>5×FS
|
|
Operating temperature
|
-40℃~150℃
|
|
Storage temperature
|
-40℃~150℃
|
|
Zero offset
|
※0±0.4mV
|
|
Sensitivity
|
※2.0-5.0mV/V/FS，Typ:3.0mV/V/FS
|
|
Output accuracy
|
0.50% FS Max.@20-25℃
|
|
Response time
|
<2mS
|
|
Insulation resistance
|
>2KV
|
|
long term stability
|
Zero@25℃：<0.25%FSO (no time accumulation）
|
|
Cycle life
|
＞5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃
|
|
Working medium
|
oil, water,gas,refrigerant,coolant, chemical solvents, detergents, etc
|
