Measuring range
|
-1-0-1…400 bar
|
|||
|
Pressure type
|
Gauge/Negative/Absolute pressure optional
|
|||
|

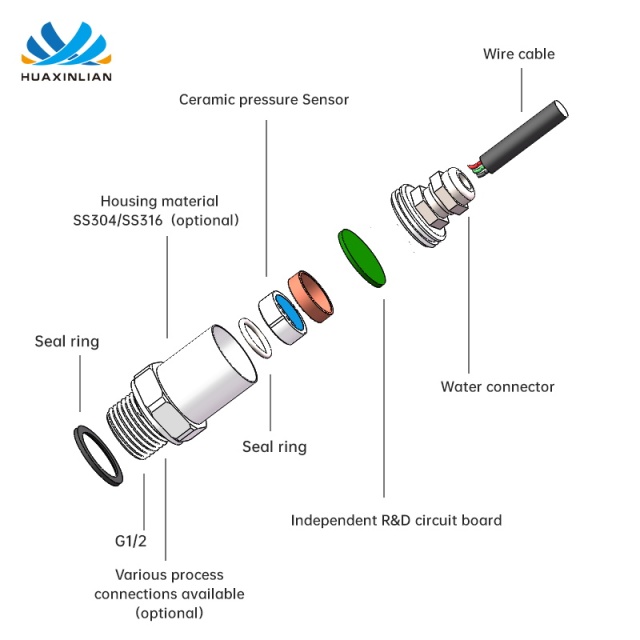

Material
|
SUS304 stainless steel, 316L stainless steel, copper, customization
|
|||
|

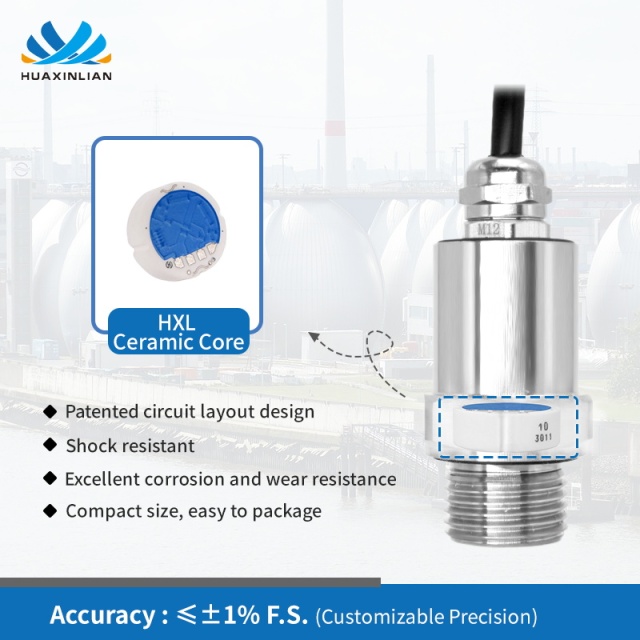

Sensor
|
Ceramic (Standard)
|
|||
|
Accuracy
|
≤ ±0.50%F.S.(Routine)；≤ ±1%F.S；Customizable Accuracy
|
|||
|
Overload Pressure
|
150%F.S.
|
|||
|
Burst Pressure
|
300%F.S.
|
|||
|
Working Temp
|
-30℃~85℃
|
|||
|
Storage Temp
|
-30℃~85℃
|
|||
|
Output
|
4~20mA
|
0~5V
|
0~10V
|
0.5~4.5V
|
|
Power supply
|
8~32V DC
|
8~32V DC
|
12~32V DC
|
8~32V DC/5V DC
|
|
Electronicl connection
|
Packard connector、Straight connection
|
|||
|
Pressure connector
|
1/4" NPT, R1/4, G1/4", G1/2", M14×1.5, M16×1.5, M20×1.5, Customizable
|
|||
