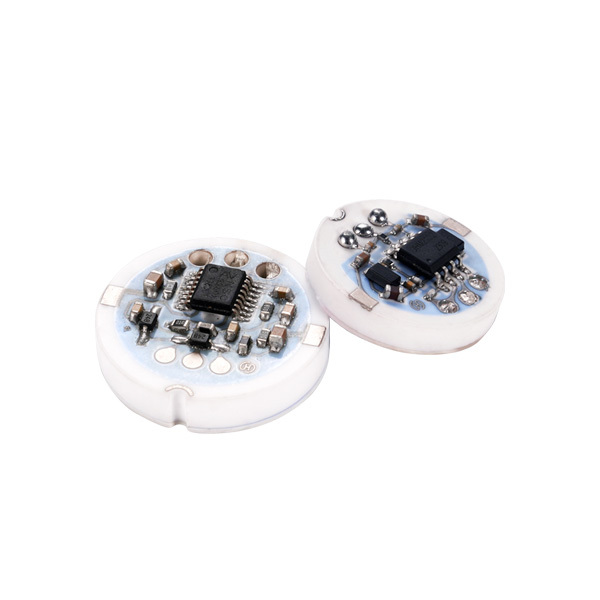

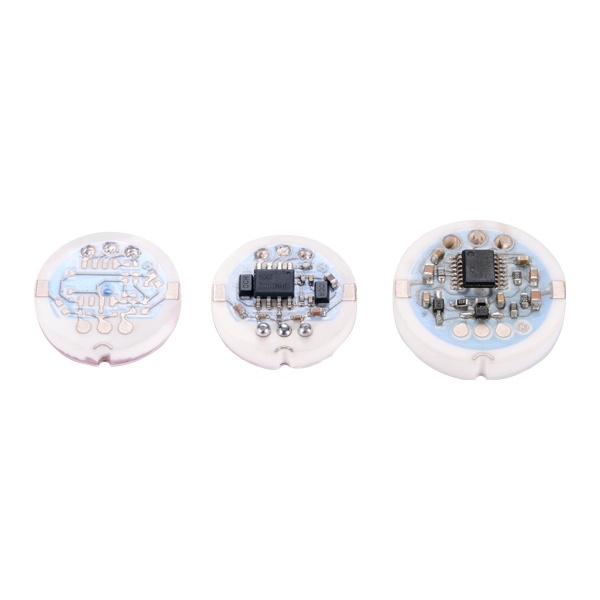

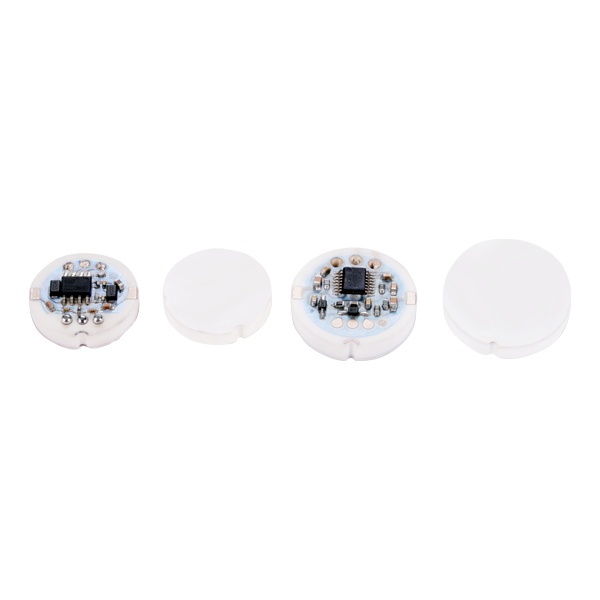

Product Parameters
| Parameters | Electrical Characterisitics |
| Series Name | D21MZ/D18MZ |
| Type | Capacitive module |
| Size (diameter x height) | 21x4.(**) mm /18x3.(**)mm |
| Supply voltage | 5.0V ±10% DC |
| Working current | ＜10 mA |
| Output signal | 0.5-4.5V DC |
| Over voltage | ＜ 12V DC |
| Operating temperature | ‘-40 ℃~125℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Output accuracy | ※ ± 1.0% Vcc@0-70℃， ± 3.0% Vcc@-40 ℃~125℃ |
| Response time | ＜ 10 mS |
| Zero-point long term stability@25℃ | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | ＞5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
| Working medium | oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc |
| D21MV/D18MV Series | ||||
| φ21×4.(**)mm Series | ||||
| Product model | Working pressure range | Product thickness H | Overload pressure | Burst pressure |
| HXL-D214A005MV | 0-5Bar | 4.25±0.05mm | >15Bar | >25Bar |
| HXL-D214A010MV | 0-10Bar | 4.33±0.05mm | >30Bar | >50Bar |
| HXL-D214A020MV | 0-20Bar | 4.45±0.05mm | >60Bar | >100Bar |
| HXL-D214A035MV | 0-35Bar | 4.58±0.05mm | >100Bar | >150Bar |
| HXL-D214A045MV | 0-45Bar | 4.74±0.05mm | >120Bar | >200Bar |
| HXL-D214A070MV | 0-70Bar | 4.78±0.05mm | >140Bar | >300Bar |
| HXL-D214A100MV | 0-100Bar | 4.85±0.05mm | >200Bar | >400Bar |
| φ18×3.(**)mm Series | ||||
| Product model | Working pressure range | Product thickness H | Overload pressure | Burst pressure |
| HXL-D183A005MV | 0-5Bar | 3.35±0.05mm | >15Bar | >25Bar |
| HXL-D183A010MV | 0-10Bar | 3.45±0.05mm | >30Bar | >50Bar |
| HXL-D183A020MV | 0-20Bar | 3.53±0.05mm | >60Bar | >100Bar |
| HXL-D183A035MV | 0-35Bar | 3.65±0.05mm | >100Bar | >150Bar |
| HXL-D183A050MV | 0-50Bar | 3.78±0.05mm | >120Bar | >200Bar |
| HXL-D183A070MV | 0-70Bar | 3.87±0.05mm | >140Bar | >300Bar |
| HXL-D183A100MV | 0-100Bar | 3.95±0.05mm | >200Bar | >400Bar |
