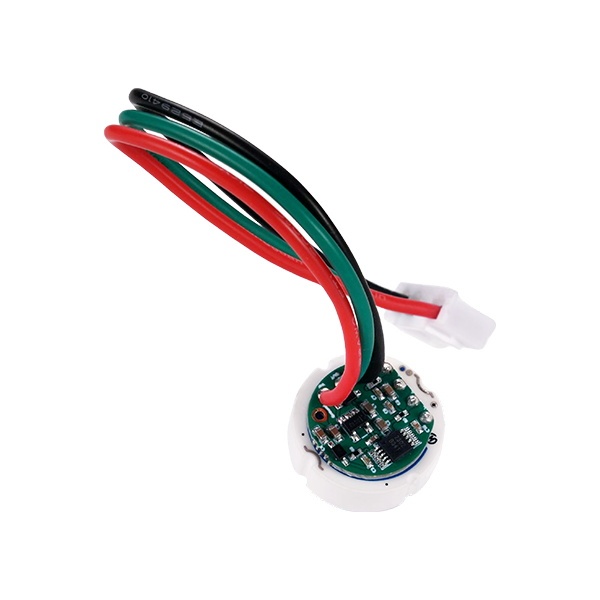

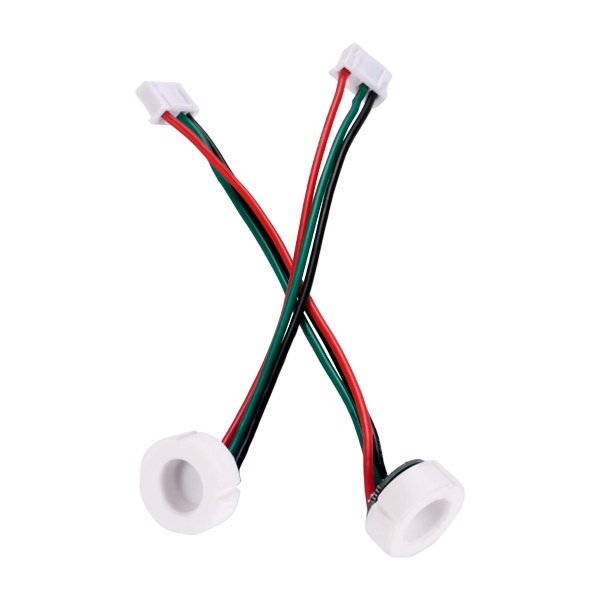

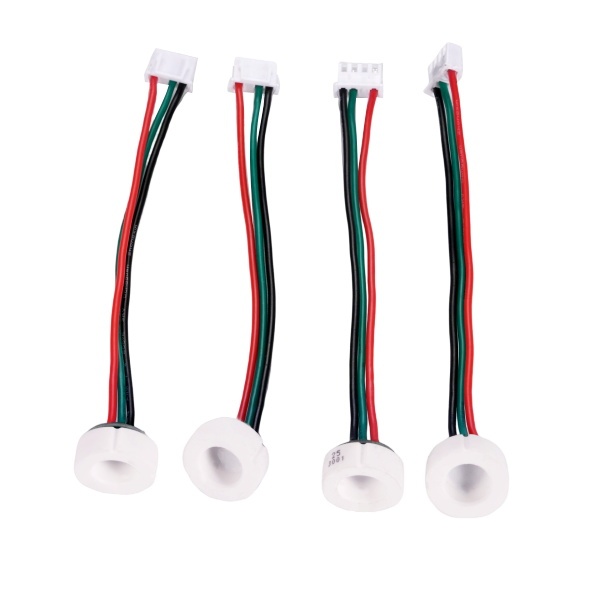

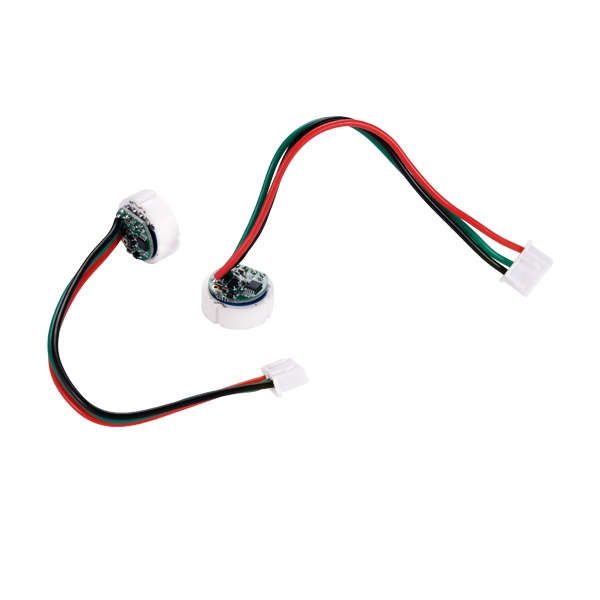

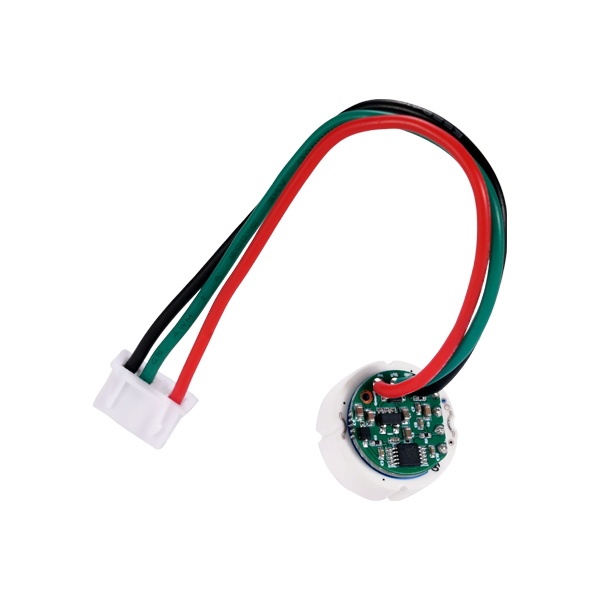

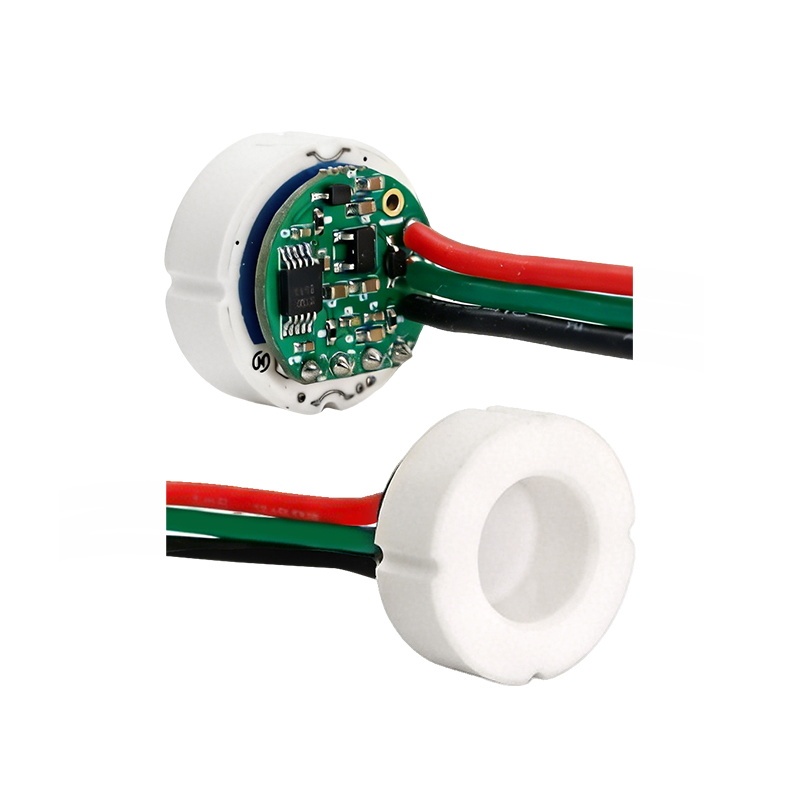

Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1

The CPS18635MV1 and CPS18350MV1 are high-precision pressure sensors designed for use in a wide range of applications, including best tire pressure gauges, manifold absolute pressure sensors, engine oil pressure sensors, and air compressor sensors. Built to meet the needs of automotive and industrial systems, these sensors provide accurate and reliable pressure data. As trusted products from leading pressure transmitter manufacturers, they are also suitable for water pressure sensors and pressure transducers for various applications.

  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1
  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1
  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1
  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1
  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1
  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1
  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1
  • Monolithic Piezoresistive Ceramic Voltage Output Pressure Sensing Module Pressure Sensors in Automotive18*6.35mm/ 18*3.50mm Voltage Output CPS18635MV1_CPS18350MV1

Main Features

  • Integrated design with high product stability
  • Supports customization of various output signals such as current, voltage, IIC, etc.
  • Easy and convenient to use
  • Excellent EMC protection and reverse polarity protection



    Product Parameters

    Parameters Electrical characterisitics
    Series Name CPS 18635MV1/CPS18350MV1
    Type  Monolithic  module
    Size (diameter x height) φ18x6.35/φ18x3.5mm
    Supply voltage 5.0V ±10% DC (optional 8-32V DC )
    Working current <10 mA
    Output voltage ※ 0.5-4.5V DC
    Over voltage < 12V DC
    Operating temperature ‘-40 ℃~125℃
    Storage temperature ’-40℃~150 ℃
    Nonlinearity 0.25% FS Max
    Hysteresis & repeatability 0.25% FS Max
    Output accuracy ※ ± 1.0% Vcc@0-70℃, ± 3.0% Vcc@-40 ℃~125℃
    Response time < 2mS
    Insulation resistance > 2KV
    Zero-point long term stability@25℃ Zero@25℃:<0.25 FSO (no time accumulation)
    Cycle life 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃
    Working medium oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc



    Product Range

    CPS18635MV1/CPS18350MV1  Series
    Thickness 18×6.35mm Series
    Product model Working pressure range Overload pressure Burst pressure (Bar)
    HXL-CPS18635G002MV1 0-2Bar 2 4
    HXL-CPS18635G005MV1 0-5Bar 10 15
    HXL-CPS18635G010MV1 0-10Bar 20 30
    HXL-CPS18635G016MV1 0-16Bar 32 48
    HXL-CPS18635G020MV1 0-20Bar 40 60
    HXL-CPS18635G025MV1 0-25Bar 50 75
    HXL-CPS18635G030MV1 0-30Bar 60 90
    HXL-CPS18635G050MV1 0-50Bar 100 150
    HXL-CPS18635G100MV1 0-100Bar 200 300
    HXL-CPS18635G200MV1 0-200Bar 300 500
    HXL-CPS18635G300MV1 0-300Bar 450 600
    HXL-CPS18635G400MV1 0-400Bar 600 /
    HXL-CPS18635G600MV1 0-600Bar 800 /
    Thickness 18×3.50mm Series
    Product model Working pressure range Overload pressure Burst pressure(Bar)
    HXL-CPS18350G005MV1 0-5Bar 10 15
    HXL-CPS18350G010MV1 0-10Bar 20 30
    HXL-CPS18350G020MV1 0-20Bar 40 60
    HXL-CPS18350G030MV1 0-30Bar 60 90
    HXL-CPS18350G050MV1 0-50Bar 100 150
    HXL-CPS18350G100MV1 0-100Bar 200 300







Precise Pressure Measurement
Both the CPS18635MV1 and CPS18350MV1 offer high precision, making them ideal for use in critical applications such as engine oil pressure sensors and manifold absolute pressure sensors. These sensors provide consistent, accurate data to ensure optimal system performance.

Wide Application Versatility
These sensors are designed for various industries, including automotive, HVAC, and industrial applications. They are commonly used as best tire pressure gauges, air compressor sensors, and water pressure sensors. Their versatility allows for broad use across different sectors requiring reliable pressure measurement.

Durability for Harsh Environments
Manufactured with high-quality materials, the CPS18635MV1 and CPS18350MV1 are built to withstand extreme conditions. Whether used in automotive systems or industrial machinery, these sensors are highly durable and reliable for long-term operation.

Manufactured by Trusted Suppliers
As products from leading pressure transmitter manufacturers, both sensors offer high quality and durability. These sensors have been tested to meet the highest standards of performance, ensuring that you get the best products available for pressure measurement.
